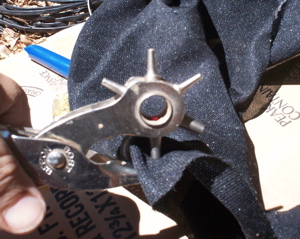

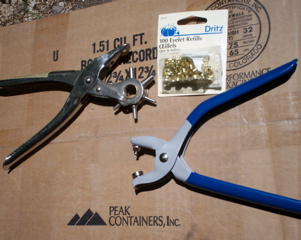

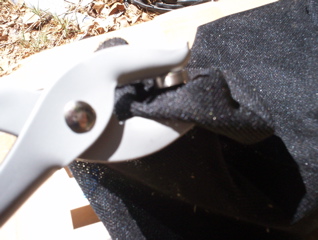

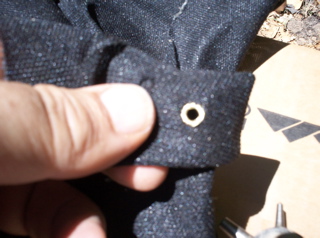

Hi all, I thought I'd send photos of the other details, following up on my earlier photos of an installed undercover. 1) Tools and supplies: rotating leather punch, 1/8" eyelets, eyelet crimping pliers. 2) Basic technique begins with punching a hole with the leather punch 3) Insert uncrimped eyelet 4) Crimp the eyelet 5) A look at the finished product. This goes quite fast. Starting in the bass corner, make a "corner fold" of the fabric (ending up with four thicknesses of fabric here), punch and insert eyelet corresponding to where your corner hook is, install the eyelet on the hook. Then stretch the fabric to the next hook, hold it folded between thumb and finger at that hook (your thumb and finger serve to mark/position where you are going to put the next eyelet), bring the fabric to where you can conveniently work on it and punch and crimp with the other hand, place on hook. On to the next. I go down the spine to where it starts to curve, then pull across the keybed to the treble corner, then fill in the rest. Fabric is cut according to the lid (as in Dampp-chaser instructions). It is best to cheat the whole piece of fabric toward the keybed and the treble side, to account for stretching around curves and obstacles. I hope this is useful for some of you. Regards, Fred Sturm University of New Mexico fssturm at unm.edu -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0122.jpg Type: image/jpeg Size: 55092 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060613/435e4b4c/attachment-0005.jpg -------------- next part -------------- Dampp-chaser undercover - 8 -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0123.jpg Type: image/jpeg Size: 61830 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060613/435e4b4c/attachment-0006.jpg -------------- next part -------------- Dampp-chaser undercover - 9 -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0124.jpg Type: image/jpeg Size: 57903 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060613/435e4b4c/attachment-0007.jpg -------------- next part -------------- Dampp-chaser undercover - 10 -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0125.jpg Type: image/jpeg Size: 49231 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060613/435e4b4c/attachment-0008.jpg -------------- next part -------------- Dampp-chaser undercover - 11 -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0126.jpg Type: image/jpeg Size: 51516 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060613/435e4b4c/attachment-0009.jpg -------------- next part -------------- Dampp-chaser undercover - 1
