[CAUT] pictures of new key weighting pattern

Tim Geinert geinert at drtel.net
Mon Jan 7 12:10:02 MST 2008


List,

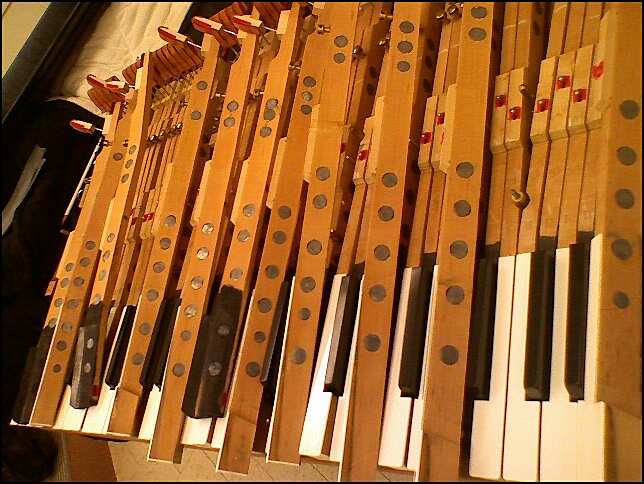

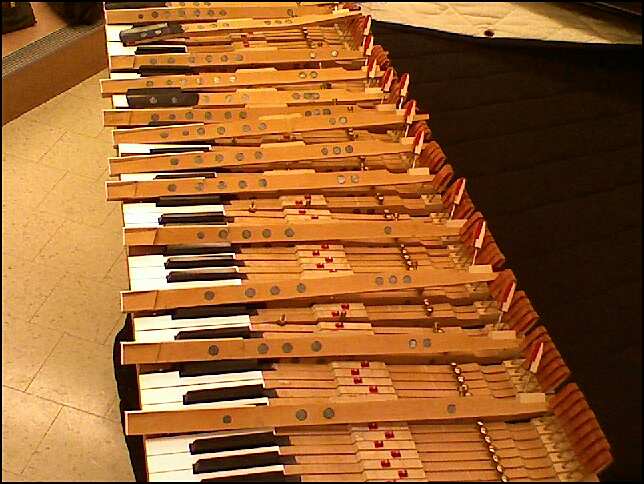

Thought some of you might like to see these pics.   I just finished plugging over 400 holes(I know that key replacement should have been considered, but it is not possible for this customer), and that was after I left what I hope to be a basic starting weight pattern in the keys.  I just weighed the leads that came out.  To be honest, I was a little dissappointed  they only weighed 15 pounds.  Oh well.  I would be interested, though, to find out where that stands as far as bragging rights go.

Oh.  The key weighing was part of an S&S "B" rebuilding 10 years ago that included Renner Blues on shanks with a 16mm pin to knuckle measurement, pinblock replacement without glueing it in or fitting it to the flange and also pushed the plate back to shorten #88 to about 46 mm, delignit block with VERY tight pins and coils 10 to 12 mm above plate.  This piano is just a joy!  :-(

Back to the grindstone.

Tim Geinert
-------------- next part --------------
An HTML attachment was scrubbed...
URL: https://www.moypiano.com/ptg/caut.php/attachments/20080107/f7027dc0/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pianoweights1.jpg
Type: image/jpeg
Size: 51846 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/caut.php/attachments/20080107/f7027dc0/attachment-0002.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pianoweights2.jpg
Type: image/jpeg
Size: 53887 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/caut.php/attachments/20080107/f7027dc0/attachment-0003.jpg
