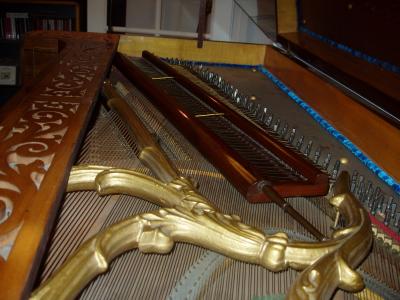

This is a multi-part message in MIME format. ---------------------- multipart/alternative attachment Calin Tantareanu wrote: > What are those strange extensions from the dampers towards the tuning > pins? > > Those are lifters. A wooden rod goes down through a metal non bushed hole in the plate... no more then about 3 mm diameter these rods... they end about 5 mm above the keytail felt ( Grin .... thats for Micheal ) and on top there are two felt cushions attached... one to keep the rod from falling through the hole... the other to cushion and meet the underside of these lifers you question about. So when you play the key, the keytail comes into contact with the bottom of the rod, with nearly immediatly pushes upwards on the lifter which in turn lifts the Dampers.... which themselves are spring actuated...despite the fact that they have the advantage of gravity. Very lightweight system. btw.. I will put up a few more tunes for you in a couple days... been really swamped lately... Cheers RicB > Calin Tantareanu > ---------------------------------------------------- > http://calintantareanu.tripod.com > ---------------------------------------------------- > > ----- Original Message ----- > *From:* Richard Brekne <mailto:Richard.Brekne@grieg.uib.no> > *To:* Newtonburg <mailto:pianotech@ptg.org> > *Sent:* Wednesday, March 17, 2004 9:02 PM > *Subject:* Hornung & Møller > > Hi folks > > Just got done refurbishing the action on this old Danish from > 1856. Really neat piano actually.. Note the size and shape of the > soundboard. Big sound really... but a strange sensation of sound > source direction when playing... you could really hear the right > side of the piano as it were.... > > Probably the nicest sounding square I've run into ever. > > > Cheers > RicB > ---------------------- multipart/alternative attachment --------------040900090703010708000003 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/58/e6/f6/4f/attachment.htm --------------040900090703010708000003 A non-text attachment was scrubbed... Name: moz-screenshot.jpg Type: image/jpeg Size: 33154 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/6b/b5/ba/53/moz-screenshot.jpg --------------040900090703010708000003 A non-text attachment was scrubbed... Name: moz-screenshot-1.jpg Type: image/jpeg Size: 42206 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/08/e3/bc/da/moz-screenshot-1.jpg --------------040900090703010708000003-- ---------------------- multipart/alternative attachment--
