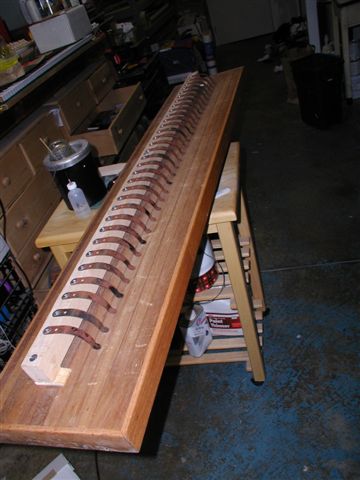

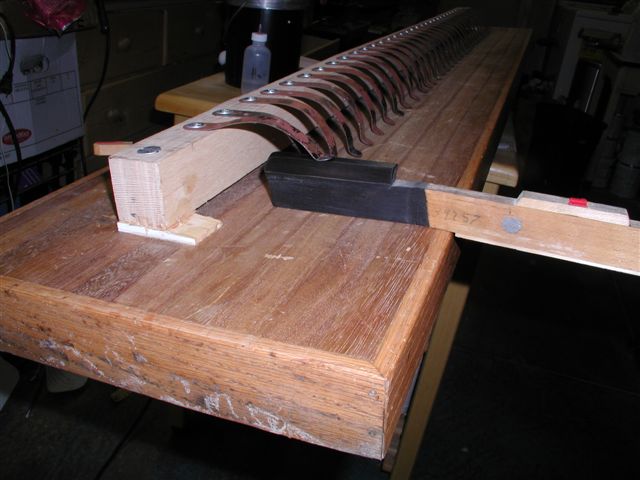

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment Attached are the photos. These are simple trap springs screwed into a long piece of pin block scrap which has been screwed down to a slab of something I had laying around. The pin block material is shimmed up off the deck to allow the lip to slip under. Once the key is placed under the clamp I depress the spring slightly while holding the key. The release of tension on the spring pulls the key slightly toward the pin block stop as otherwise there is tendency for the key to drift back while the keytop remains stationary and a gap can form at the front. As you can see, you can also use this for clamping a set of sharps. If you install tops without fronts, you could make the jig with a stop for the keytop recessed whatever distance you want underneath and behind the line of the larger stop for the key front. That way you can index the same amount of overhang of the key top for each key. Since I don't install keytops without fronts I didn't bother to do that. David Love davidlovepianos@comcast.net ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: P1010005.JPG Type: image/jpeg Size: 43611 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/57/28/15/fa/P1010005.JPG ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: P1010006.JPG Type: image/jpeg Size: 73313 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/7a/be/ce/7a/P1010006.JPG ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: P1010007.JPG Type: image/jpeg Size: 68571 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/e5/52/8a/d0/P1010007.JPG ---------------------- multipart/mixed attachment--
