Short Capstan

[Jurgen Goering]

> From: Erwinspiano at aol.com
> Date: May 5, 2006 8:05:09 AM PDT
> To: pianotech at ptg.org
> Subject: Re: Short Capstan
> Reply-To: Pianotech List <pianotech at ptg.org>
>
>   David
>   I think I nay have a set.  What is the inteneded use?  I bought them
> for use in my back action conversion modifications but am now using
> piano forte supplied beauties with a reg tool hole  & a wider contact
> surface on the head.
>   Dale

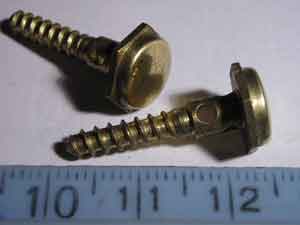

These are the damper underlever capstans Dale is talking about.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: text/enriched
Size: 1090 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/481ecfc4/attachment.bin
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Damper-Capstan.a.jpg
Type: image/jpeg
Size: 4642 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/481ecfc4/attachment.jpg
-------------- next part --------------

They are 24 mm long (= 15/16")
The hex head allows capstan insertion with a power driver, regulation
is done with a capstan regulator.


-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: text/enriched
Size: 141 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/481ecfc4/attachment-0001.bin
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Damper-Underlever.a.jpg
Type: image/jpeg
Size: 4914 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/481ecfc4/attachment-0001.jpg
-------------- next part --------------

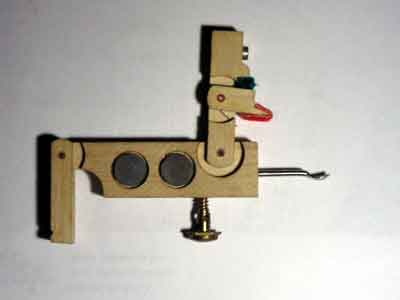

This is how they are mounted in a damper underlever:


Jurgen Goering
Piano Forte Supply
(250) 754-2440
info at pianofortesupply.com
http://www.pianofortesupply.com
