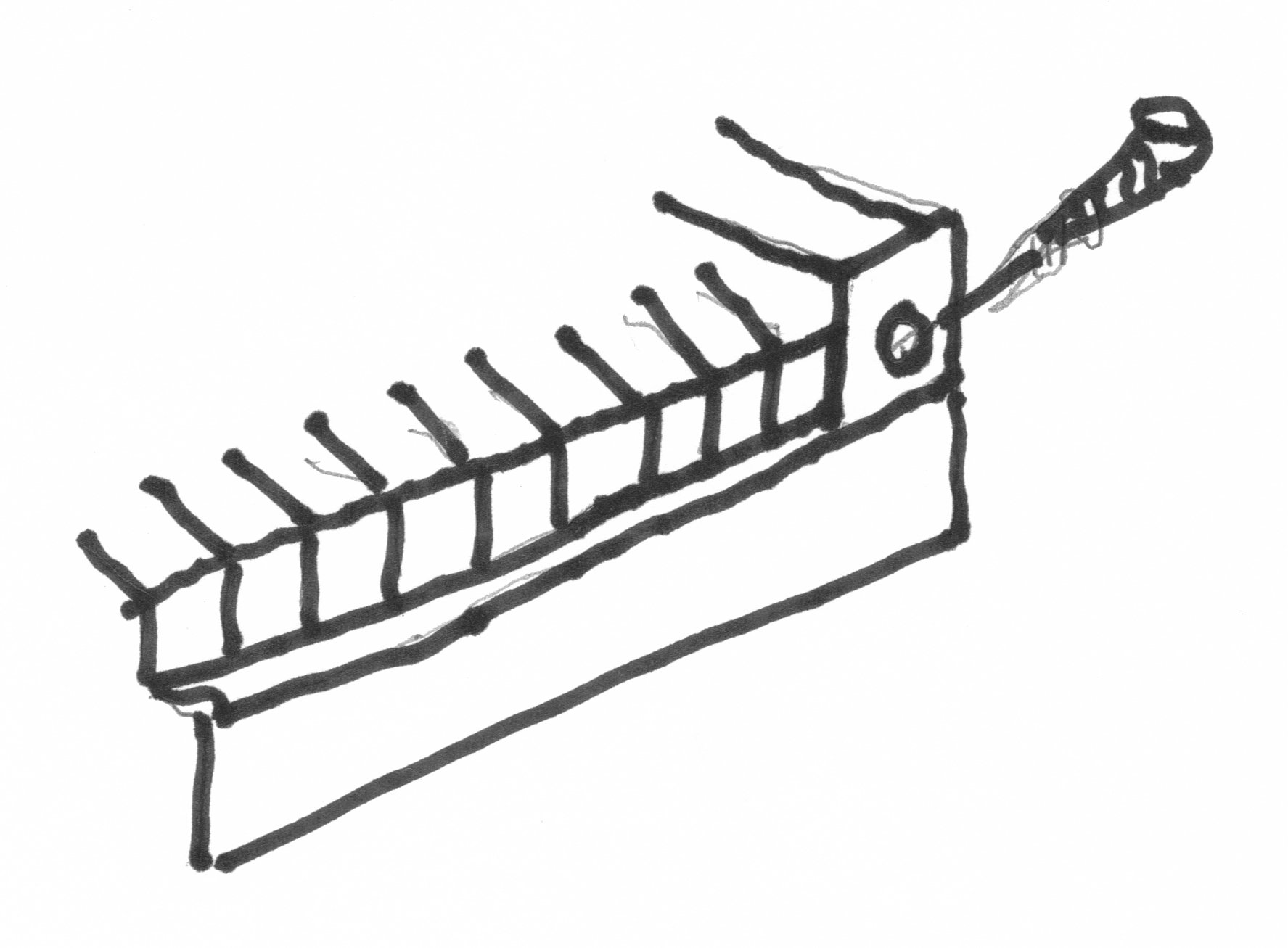

A Grinnel baby grand. I need to remove the action. After removing the key slip I found the only screws on the bottom of the keybed were those to hold on the legs. On the cheek blocks on either end of the keyboard is a screw that goes from the front on about a 45 degree angle into the keybed. (See crude diagram attached). I removed those screws and although the cheek blocks move and are somewhat loose they will not come out. Also the fall board doesn't seem to be attached to the cheek blocks and it doesn't appear that it will come out even if I did get the cheek blocks out. This is first time in 20 years I haven't been able to remove an action. HELP PLEASE Dick Day Marshall -------------- next part -------------- A non-text attachment was scrubbed... Name: Grinnell Action.jpg Type: image/jpeg Size: 115924 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060524/4ee041ba/attachment-0001.jpg
