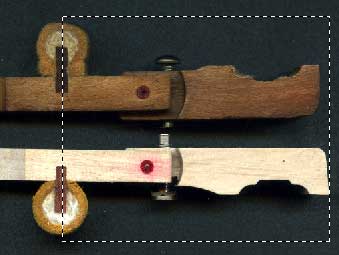

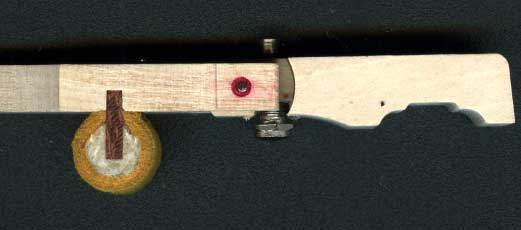

At 08:19 -0500 16/11/07, Jon Page wrote: >Looking at my parts, there is a Hamburg flange with the drop screw >about 2 mm proximally located. In your photo, the red leaching of the >dye into the shank around the bushing says Renner. >My NY S&S shanks have a bushing with a white center not all red. >Some Renner flanges (if I'm not mistaken) have the center about 1 mm >more distal. Here is a clear picture of the shank and flange currently supplied by Renner for the _New_York_action. The distance from centre to middle of roller core is advertised as 16.2mm. (Abel does 16mm.). The standard measurement, and that used for the Hamburg shanks, is 17mm. Compare this with Greg's picture and you will notice not only a difference in the wood used for the core but an apparently quite marked difference in the position of the drop screw even allowing for parallax. The quality of the buckskin is also different. And here is the new Renner shank and flange lined up with the original NY Steinway S part. There is almost 2mm difference in the disrance from the roller core to the flange profile. In other words everything is moved inboard nearly 2 mm. What do do? The simplest solution is probably to pack the lever rail with card along the top of the screws and pack the near edge of the hammer rail to force the flanges back as far as possible -- note that the profile has a wider central section than the original, so some adjustment is possible without cutting away the far side of the flange. One way or another it is possible to reduce the error to manageable proportions, and I've seen some pretty extreme fixes of the kind on Steinway's own work. Nevertheless Renner need to be told that their dimensions are wrong. And a fat lot of difference that is likely to make! JD -------------- next part -------------- An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/20071117/6e099a4d/attachment-0001.html -------------- next part -------------- A non-text attachment was scrubbed... Name: nys1.jpg Type: image/jpeg Size: 11193 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20071117/6e099a4d/attachment-0003.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: nys2.jpg Type: image/jpeg Size: 8736 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20071117/6e099a4d/attachment-0004.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: nys3.jpg Type: image/jpeg Size: 11678 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20071117/6e099a4d/attachment-0005.jpg
