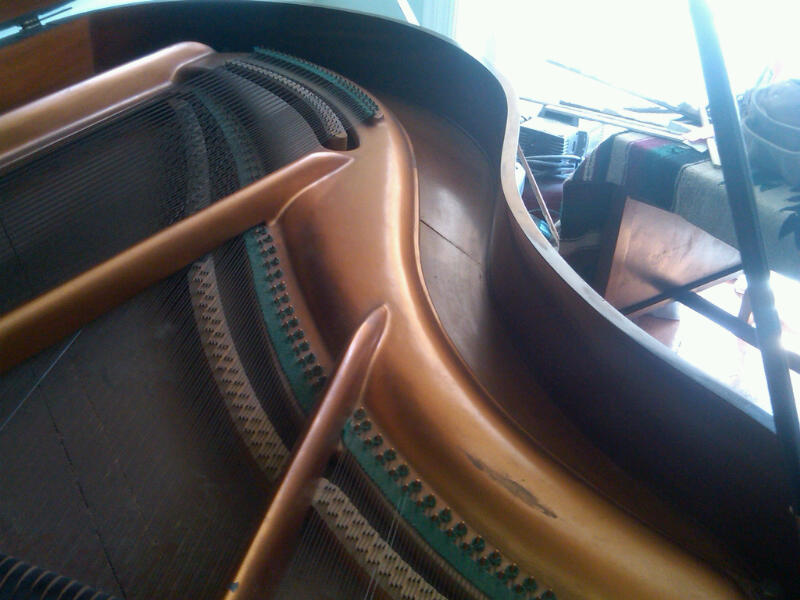

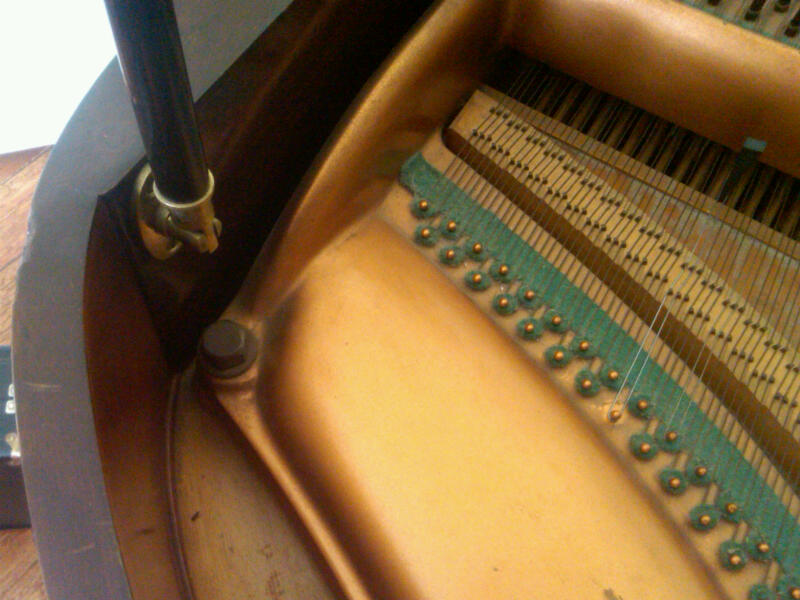

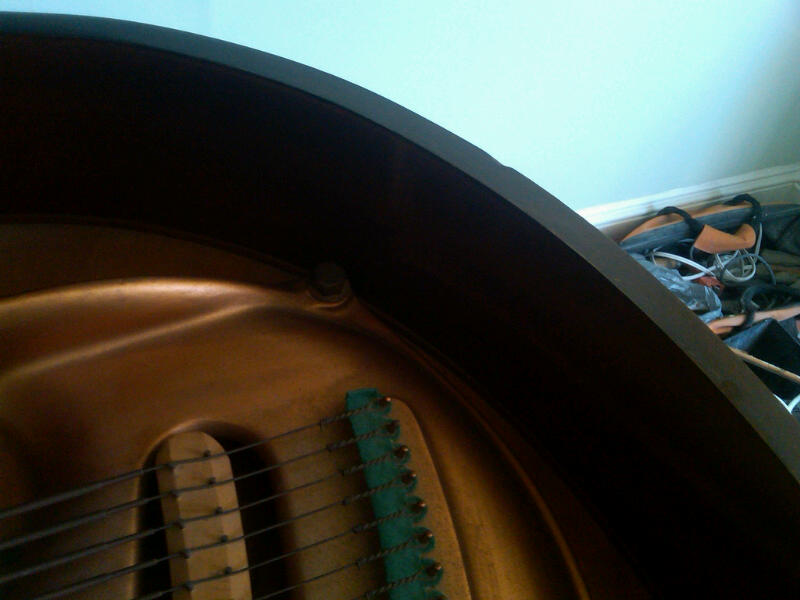

Attached are some photos. You can see the cracks on the full plate shot and also see how the plate comes away from the rim and is unanchored for that stretch. The photo of the treble side shows the area of the soundboard that is buried underneath the overhang. It is similar to the straight side. The three bolts pictured are the extent of the plate anchoring with the exception of the pinblock area. Even while the middle of the piano is noisy due to countless rib separations the bass has is still very beautiful sounding. Solid bridge, no cap. David Love www.davidlovepianos.com -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00152-20110412-1617.jpg Type: image/jpeg Size: 73595 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110412/61e1e8f4/attachment-0003.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00153-20110412-1618.jpg Type: image/jpeg Size: 91333 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110412/61e1e8f4/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00155-20110412-1618.jpg Type: image/jpeg Size: 53963 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110412/61e1e8f4/attachment-0005.jpg>
