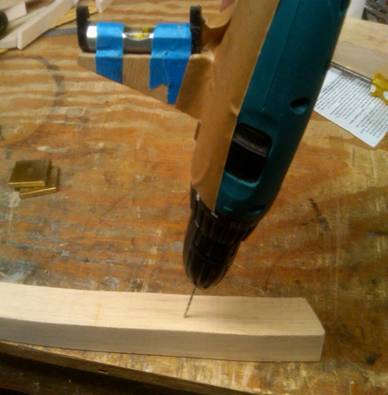

Hi David: I have been thinking about the mass of the tool jig combo. Perhaps adding weights to the base of the stand and/or on the mounting jig to balance it out and make everything stable. Thanks, Will From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of David Love Sent: Saturday, October 01, 2011 1:19 AM To: pianotech at ptg.org Subject: Re: [pianotech] bridge pin drill speeds I use a regular drill and I don't think the speed matters that much, just not too slow. A high tech attachment to keep things at the proper angle (20 degrees). In-out, one smooth move. Set the bit in place, squeeze the trigger, down and up. I don't like using a drill press for this procedure because I want to be sure that the bit is set in the punch mark before I start the drill spinning. I prefer something heavier for this operation as pictured. I find it easier for me to keep things on line and steady with a bit of weight to hold. If you go too slow you are at greater risk for breaking the bit. Use a proper spiral type fast ejection bit and keep it moving. I actually prefer to do this in the piano but many don't, doesn't matter to me. I wouldn't worry about an "optimum" speed. Do it with something where the speed can be easily manually controlled and also stop at will. Nothing worse than a wandering bit for this procedure (except a broken one). David Love To those of you on the forum who do bridge recapping and such, I pose the following question: what do you consider to be an optimal RPM speed for the bridge pin drill bit to be turning at? I have a reason for this question. In the past I have drilled my bridges in the piano with the bridge glued on the board, and the board glued into the rim,using a hand electric drill. But I am in the process of changing my bridge capping methodology whereby I am capping the bridge with horizontally laminated veneers, and this means I will be planning the root to establish down bearing, and then gluing on the laminated cap of established thickness to it. After I plane the bridge root, I will remove the bridge from the panel (which is held in place by a multitude of screws) to readily glue on the cap. I want to take advantage of this access to drill and notch my bridges as well, and then glue the bridge to the panel, and finally glue the whole board into the rim. Given that I will have the bridge off the panel and attached to a work table, I am planning on making a drilling jig with the desired drilling angle built in, along with an adjustable depth stop. The jig would need to use some kind of small inline drill like a pneumatic inline drill (about 2500 RPM) or and electric inline drilling tool (Dremel tools 5,000 to 35,000 RPM) Testing on my drill press at 2500 RPM, the pneumatic seems doable. But the hose attached to the tool can be unwieldy, so I am leaning towards an electric tool. But I am concerned that the speeds of 5,000 RPM up will be too fast, and burn and expand the hole. Does anyone have experience using a Dremel type tool for bridge drilling? I will happily entertain other suggestions for tools. Thanks for your input. Will -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20111001/12c30297/attachment-0004.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 20450 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20111001/12c30297/attachment-0004.jpeg>
