[pianotech] Geo Broadbent Tuning Pins

[Dave Smith]

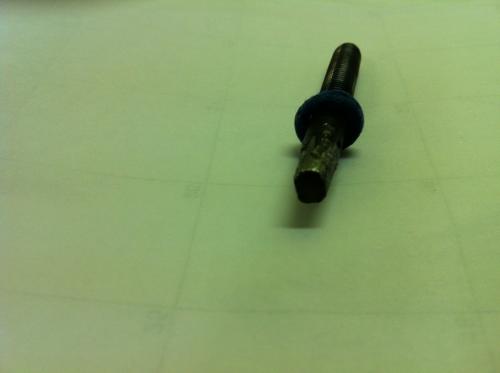

Tom, its hard to photograph but I had described the top’s dimensions, about .2”x.26”  rect or oval as you say, but most pins were more rectangular than oval  ..  here is another pic.

Dave Smith
SWFL

From: Tom Gorley
Sent: Thursday, September 22, 2011 5:12 PM
To: pianotech at ptg.org
Subject: Re: [pianotech] Geo Broadbent Tuning Pins

Dave, you are not showing us the shape of the top of the pin.  That's what we need to know to answer your question.  I presume it's a standard oval pin from the 19th century.



     Tom Gorley
  Registered Piano Technician







On Sep 22, 2011, at 1:02 PM, Dave Smith wrote:


  I encountered a Geo Broadbent straight-strung grand piano with tuning pins as shown. Piano is over 100 years old. Although the pin shown is a bit chewed up from some previous tech (not this one) using vise grips, it it pretty close to the other undamaged ones still in the piano. No tuning lever tip I have seen will fit this, as the pin is rectangular in shape, .2”x.26” roughly. The pins are threaded into the block with a pretty coarse thread.

  Does anyone know where to find a hammer tip that would fit this type pin? The piano was moved here from South Africa, where apparently the techs had no trouble tuning it :}

  Also the piano is sitting at about 100c flat to A440, but I was assuming it was designed to be tuned at A415 anyway. Any thoughts on this also? Thanks

  Dave Smith
  SW FL
  <IMG_0597.JPG>
