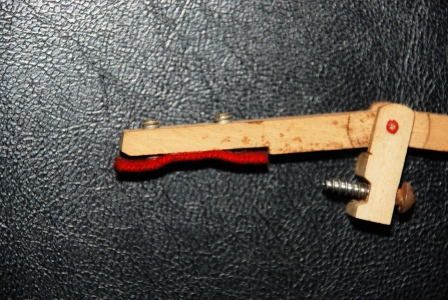

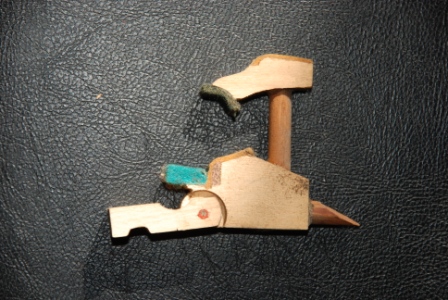

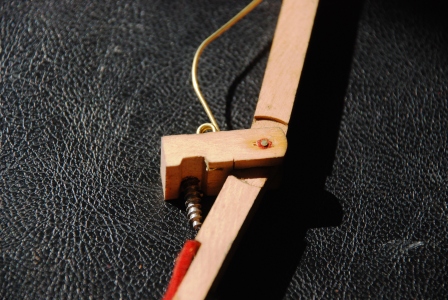

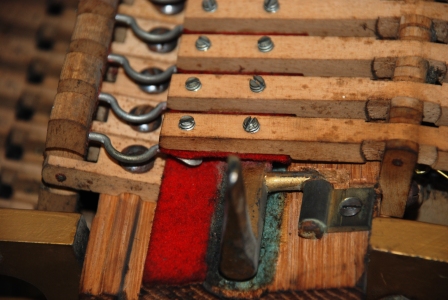

Yesterday I tuned an 1898 Collard & Collard upright. Since damper lever fine adjustment screws were recently discussed, I thought it was worth photographing this, because these damper tails had TWO adjustment screws: one for the spoon, and one for the lift rail! The action wasn't a bridle tape action, but not a spring & loop action either. There are aprings, but no loops.The springs bear on felt pads on the oddly-shaped base of the catchers (see pic). Straight strung too. I had to replace several broken damper springs, which was fiddly. The tails go vertically stright through the flange, to be snipped and folded over underneath. Best regards, David. www.davidboyce.co.uk -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120517/e9a8aa58/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: C&C 1.jpg Type: image/jpeg Size: 151035 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120517/e9a8aa58/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: C&C 2.jpg Type: image/jpeg Size: 138328 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120517/e9a8aa58/attachment-0005.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: C&C butt & catcher.jpg Type: image/jpeg Size: 126083 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120517/e9a8aa58/attachment-0006.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: C&C damper spring.jpg Type: image/jpeg Size: 133844 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120517/e9a8aa58/attachment-0007.jpg>
