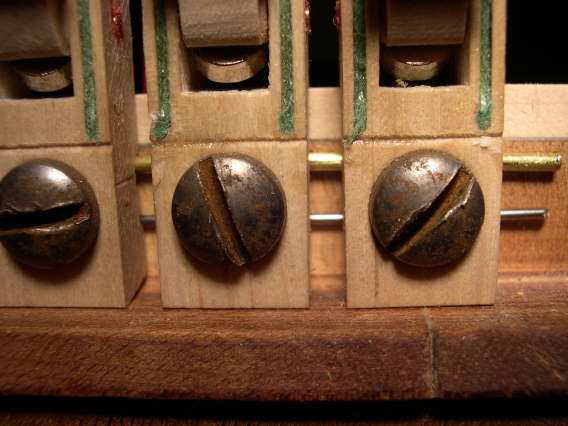

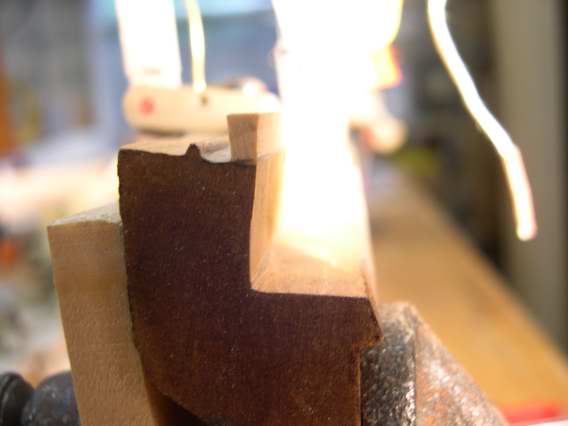

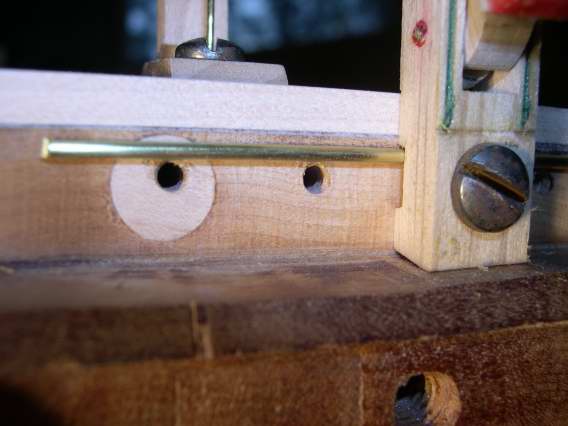

Hi Will - I agree with you that 0.035 (I'll presume your units are inches - sure glad you don't work for NASA!) is not acceptable. As several have suggested, you might want to consider converting to wooden flanges. I have done it and found the process to go quite smoothly. Bill Spurlock has a very nice written method with diagrams & pictures to follow. A few photos below to stimulate your creativity...... Basically all you need to do is modify the original action rail so that the butts are located properly such that the action centers are where you want them. In the case photos below, I had to add a strip of maple to the top of the rail (that's why my middle name is "Epoxy"!) and then route out for the flanges. Drill your holes and you are good to go (if I recall correctly, I used the original brass rails as a guide for flange hole drilling locations)! Terry Farrell On Sep 11, 2012, at 9:05 PM, Encore Pianos wrote: > We argued about who was right for a while. He thought it was sufficiently accurate, they had been doing this for 50 years, and they had never had any problems before. He told me I should be able to make it work and besides, what other choice do I have, since nobody else makes them? > > > Finally, the 64,000 dollar question: Would any of my dear readers find a tolerance of .035 acceptable, or is that value totally out to lunch? If you were in my shoes, where would you be finding yourself sitting? > > Thanks for your help. > > Will Truitt > > > -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120912/70ceb621/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: image0002.jpg Type: image/jpg Size: 36966 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120912/70ceb621/attachment-0003.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: image0001.jpg Type: image/jpg Size: 46252 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120912/70ceb621/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: image0002.jpg Type: image/jpg Size: 55715 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120912/70ceb621/attachment-0005.jpg>
