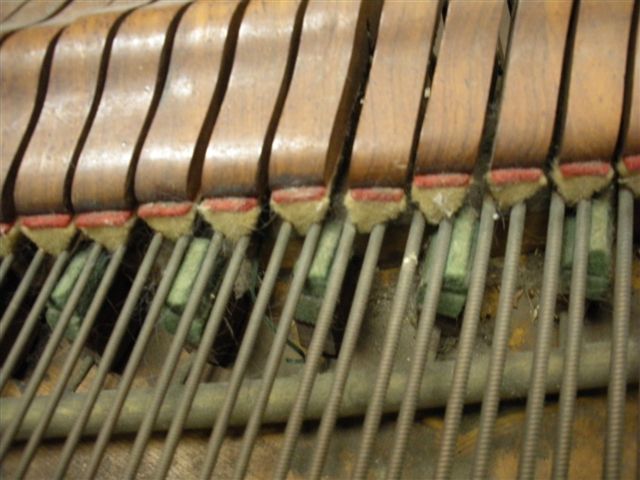

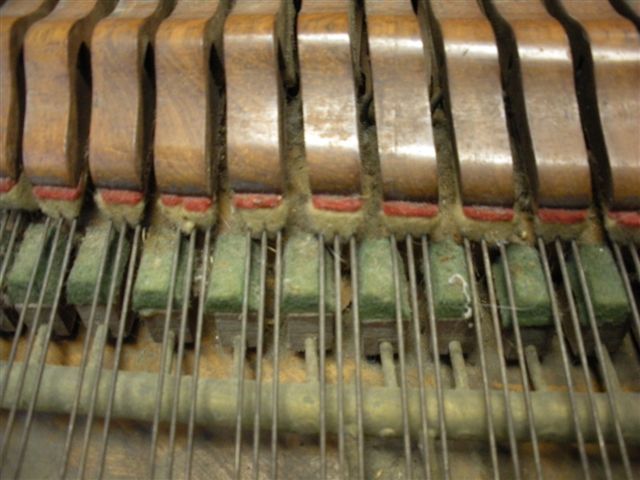

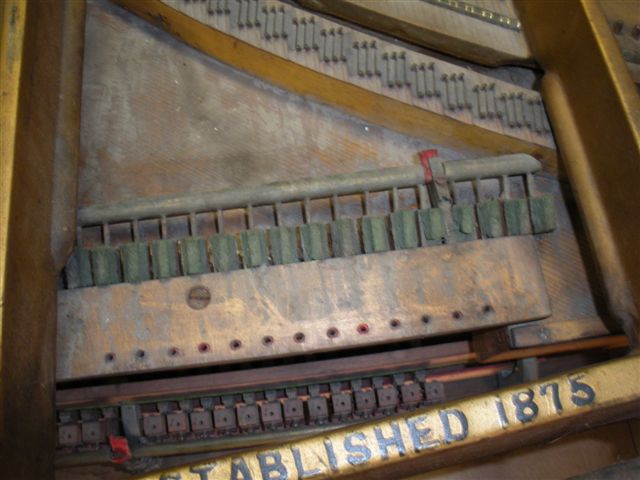

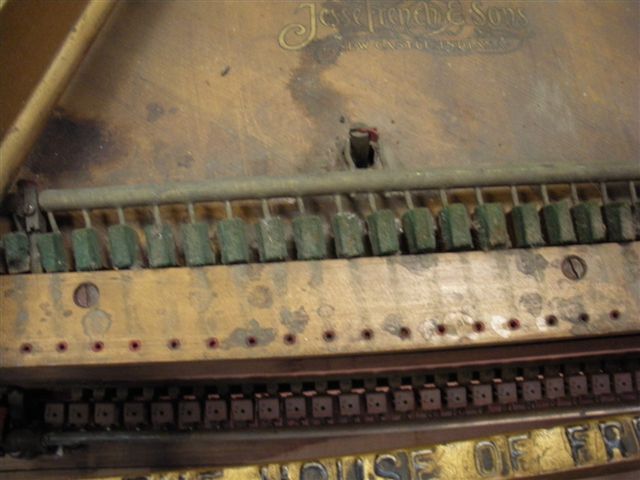

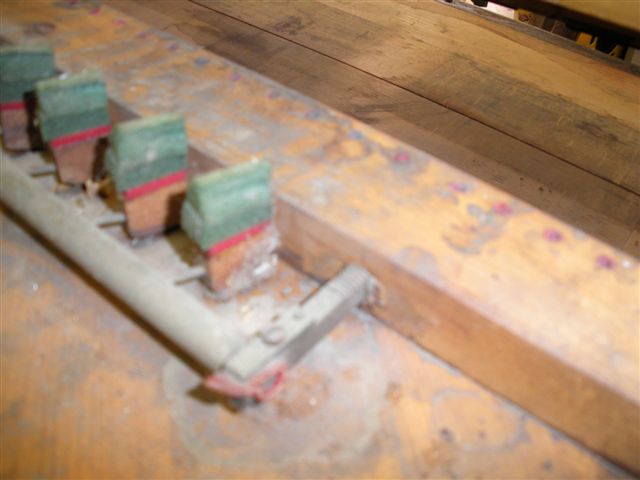

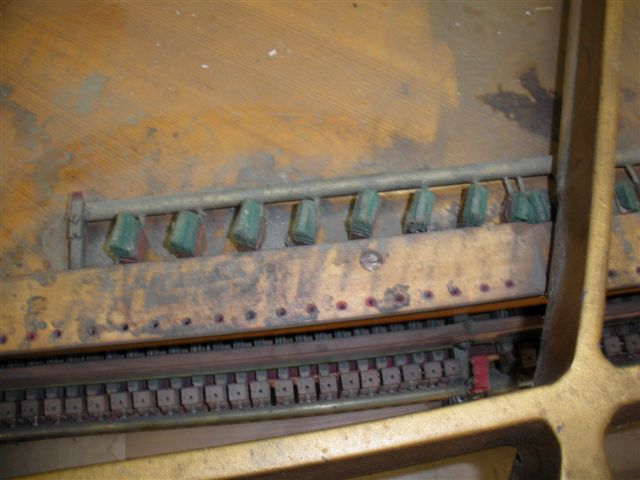

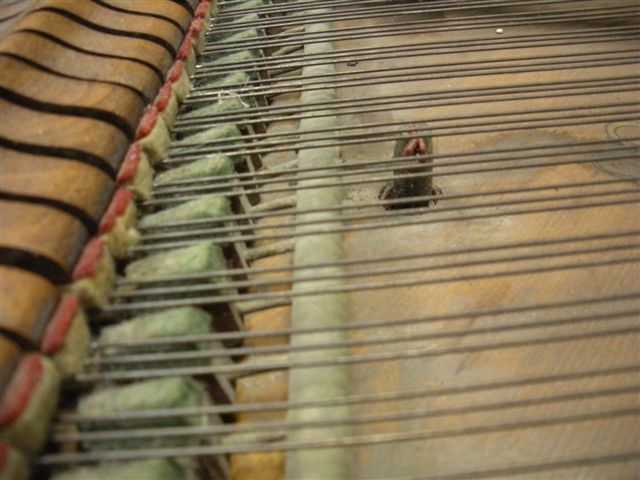

Thought people would be interested in a different set up to replace the una corda pedal. This piano has a set of dampers that are positioned between the strings and the soundboard. When the una corda pedal is pressed, the dampers rise and stop the outside strings from vibrating. In the bass, they are spaced for every other unison so that one of the two is dampened. The key frame is screwed to the keybed and does not move. The pictures are before the piano was unstrung and after. Rex Roseman -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0036.JPG Type: image/jpeg Size: 58466 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0008.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0365.JPG Type: image/jpeg Size: 50045 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0009.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0037.JPG Type: image/jpeg Size: 57820 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0010.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0387.JPG Type: image/jpeg Size: 40812 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0011.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0038.JPG Type: image/jpeg Size: 69161 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0012.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0364.JPG Type: image/jpeg Size: 51733 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0013.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0046.JPG Type: image/jpeg Size: 58829 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0014.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: DSCN0366.JPG Type: image/jpeg Size: 55410 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120914/62a6d8da/attachment-0015.jpeg>
