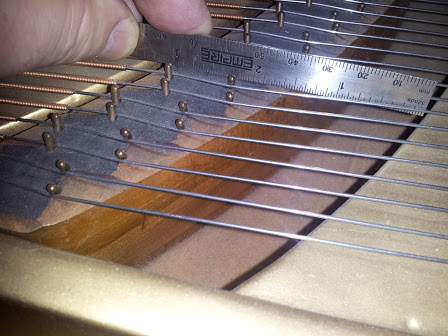

Here is a link to a post I made on the Google+ Pianotech forum: https://plus.google.com/u/0/100617699727189487414/posts/cYxgoJUYtxc It shows the attached pictures demonstrating the roll back of a cantilevered bass bridge. Dean Dean W May (812) 235-5272 voice and text PianoRebuilders.com (888) DEAN-MAY Terre Haute IN 47802 -----Original Message----- From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of Ed Foote Sent: Thursday, January 31, 2013 11:24 AM To: pianotech at ptg.org Subject: Re: [pianotech] Totally glueless Ed Foote RPT http://www.piano-tuners.org/edfoote/well_tempered_piano.html >>It's the presumption of "acoustic coupling" that is questionable here. Good mechanical coupling is necessary for one part to move the other to make the system work. What I tried, unsuccessfully again, to point out was the difference in scale between the mechanical action that is taking place and the imagined tiny vibrations within the various individual parts. The basic action is much coarser and simpler than is typically believed. Was the O rebuilt because the bass was dead? Were the bass strings replaced and the bass was still dead? If the screws were too loose to provide a decent mechanical connection, that should have been the case. What prompted the rebuild?Ron N<< The restringing had nothing to do with the bridges. This is a school piano, and lots of broken strings and iffy pins were sufficient reason. The discovery of an unglued bridge was incidental. The bottom of the bridge's apron was curved to match the soundboard's curve. I submit that the coupling provided by a couple of screws is inferior to a full glued surface for several reasons. The screws are only holding from the middle of the bridge to its rear surface, the cantilevering is trying to rotate the bridge and the lack of glue means the fulcrum is the distal edge of the surface and the upwards force is in the middle. This loses all attachment in front of the screws while creating a very short moment arm between the screw and the distal edge of that bridge. The pair of screws puts the entire upwards rotational pressure of the bridge on two small, unsupported spots on the soundboard, whereas a glued surface would have the full footprint resisting the strain. The tension of the screws would also vary with humidity, eventually loosening enough to allow the bridge to rotate lower, (this had happened in this case). Due to the elastic nature of wood, there is no way for the proximal edge of the apron, under stress, to stay in contact with the soundboard when held by these two screws, greatly reducing the mechanical contact between the bridge and board. Luthiers have long known that different ways of attaching necks have different sounding results. The integrity of the neck joint is widely recognized as having an effect on tone. I have observed this, myself, on numerous guitars that have been repaired, and I am inclined to believe that coupling does have an acoustical effect, at least, until I am shown otherwise. With only two screws holding the stucture together, there will be less coupling than fully glued. If one is to believe that any coupling is as good as another, this won't matter. The mechanical coupling is easy to measure, the bridge is still there, so it must still be attached.... The acoustic coupling is more difficult to measure. If I decide that there must not be any difference because I can't hear it, then I am going to find less and less things that make a difference because 60 year old ears are no longer hearing the same as 30 year old ears. Regards, ----- No virus found in this message. Checked by AVG - www.avg.com Version: 2013.0.2890 / Virus Database: 2639/6067 - Release Date: 01/29/13 -------------- next part -------------- A non-text attachment was scrubbed... Name: bass bridge1.jpg Type: image/jpeg Size: 54679 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130131/c16aef1e/attachment-0002.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: bass bridge2.jpg Type: image/jpeg Size: 59806 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130131/c16aef1e/attachment-0003.jpg>
