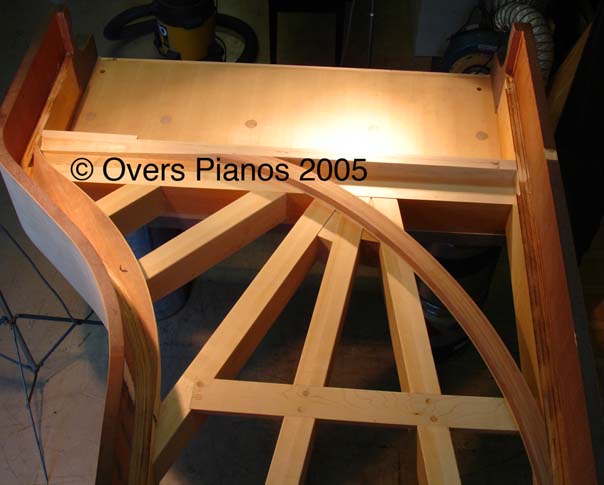

---------------------- multipart/related attachment --============_-1080757283==_ma============ Hi all, This week we completed fitting the bass corner cut-off and the treble cut-off to the case of piano no. 6 (the one we'll be bringing to the Rochester PTG convention next June). Please find below a reduced size version of an overhead image. Image showing the sound board cutoff sections, fitted to the case of the Overs 225 no.6, under construction. For those of you who have a 24" screen, a larger version of the above image can be found at; http://members.optusnet.com.au/ronovers/oversno6.1.jpg (144 K) I if you have a smaller screen you'll need to scroll around a bit. A closer image of the treble cut-off area can be found at; http://members.optusnet.com.au/ronovers/oversno6.2.jpg (144K) In the above image link, you can see that the belly rail, back beams, and inner rim are all manufactured from rock maple. The outer rim is maple also but its covered and can't be seen. The top surface of the belly rail in this instrument is flat, and not crowned. Both cut-offs are made from Antarctic Beech (nothofagus Moorei - darker wood) and Silky Beech (Citronella Moorei - lighter coloured wood). Both are local timbers, and structurally at least as strong as Maple. Kawai KG series agraffes required. I am wondering if someone could supply me with two new Kawai KG series trichord agraffes. I had quite a stock of these things, but I've supplied a few too many to various techs over the years. Now when I want a couple myself I haven't got any. If anybody has a few, and can spare two, I'd greatly appreciate it. Thanks, Ron O. -- OVERS PIANOS - SYDNEY Grand Piano Manufacturers _______________________ Web http://overspianos.com.au mailto:ron@overspianos.com.au _______________________ --============_-1080757283==_ma============ An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/caut.php/attachments/87/bb/a2/7a/attachment.htm --============_-1080757283==_ma============-- ---------------------- multipart/related attachment A non-text attachment was scrubbed... Name: oversno6.1m.jpg Type: image/jpeg Size: 105614 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/ac/9a/9d/31/oversno6.1m.jpg ---------------------- multipart/related attachment--
