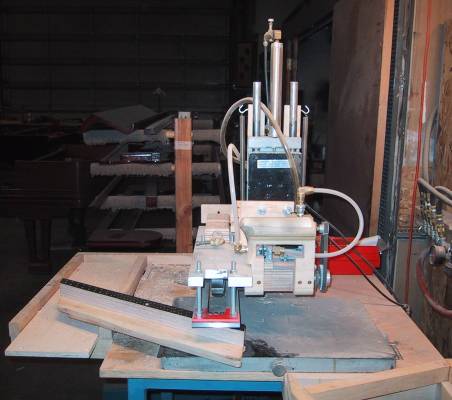

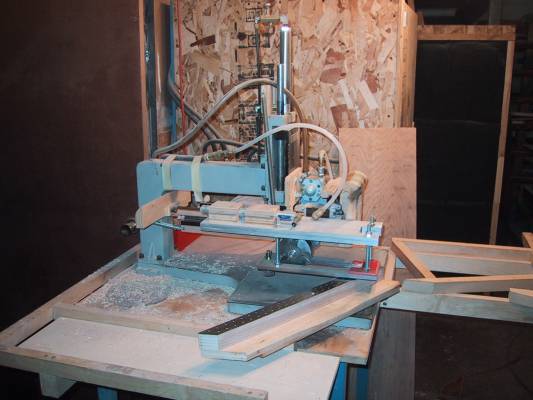

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment ----- Original Message ----- From: "Paul E. Dempsey" <dempsey@Marshall.edu> To: <pianotech@ptg.org> Sent: October 14, 2002 6:02 AM Subject: Bridge capping materials,etc. > Would someone care to expand/expound on the air driven bridge notching > tool alluded to earlier in this thread, e.i., where does one come by > something of this ilk, cost, etc. > > Thanks > > Paul Dempsey > ------------------- Attached are three pictures of our bridge notching machine and one of a bridge showing some finished cuts. There is an air cylinder above controlled by a foot valve that raises and lowers the cutter assembly. There is an aluminum plate that holds the bridge down during the cutting operation. The cutter head and air motor are mounted on linear bearing and slide in and out. An adjustable stop sets how far the cutter travels and a hydraulic shock absorber limits the travel speed of the assembly and keeps the cutter from climbing over the top of the bridge. The machine works fairly well as is but I'm planning a major upgrade soon. More precise vertical linear bearings are high on the list. Also, it was originally intended to use a laser crosshair to index the bridge and it will finally get that. Del ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Bridge -- Notched 1-LR.jpg Type: image/jpeg Size: 16632 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/71/7c/41/41/Bridge--Notched1-LR.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Bridge Notching Machine - Left Side-LR.jpg Type: image/jpeg Size: 43497 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/6e/c5/c7/42/BridgeNotchingMachine-LeftSide-LR.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Bridge Notching Machine - Front-LR.jpg Type: image/jpeg Size: 38663 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/23/55/7b/08/BridgeNotchingMachine-Front-LR.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Bridge Notching Machine - Right Side-LR.jpg Type: image/jpeg Size: 36243 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/ea/fb/37/60/BridgeNotchingMachine-RightSide-LR.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Bridge Notching Machine - Cutter Detail-LR.jpg Type: image/jpeg Size: 44032 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/21/ea/4c/c8/BridgeNotchingMachine-CutterDetail-LR.jpg ---------------------- multipart/mixed attachment--
