Baldwin Gauge?

[Conrad Hoffsommer]

---------------------- multipart/mixed attachment
At 23:21 7/3/2005, you wrote:
>It is a convention give-away tool used to determine whether or not a
>hammerhead is square to the hammershank. Simply lay the short, bent over
>part on top of the hammershank, move it so that the long, narrow part runs
>along the hammerhead molding and see that the hammerhead is square to the
>shank.
>
>When replacing hammers it is used to draw a line along the centerline of
>the original hammerhead molding on the sample hammerheads (those left in
>place to align the new hammerheads to). This can be quite helpful if the
>original hammerheads have been badly mis-shaped over the years.
>
>Del
>
>

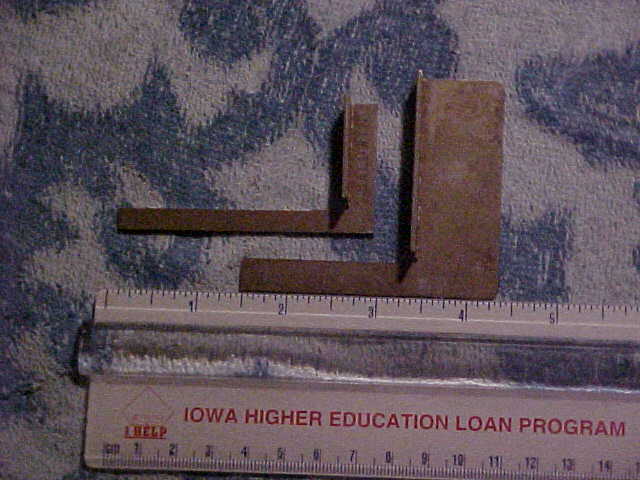

I've got two of them. Different length "vertical" arms.


---------------------- multipart/mixed attachment
A non-text attachment was scrubbed...
Name: MVC-006S.JPG
Type: image/jpeg
Size: 57089 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/05/88/57/21/MVC-006S.JPG

---------------------- multipart/mixed attachment

Conrad Hoffsommer
