Palm Nailer

[Ron Nossaman]

> I also use the Harbour Freight palm nailer on my occasional restringing
> job.  Tip is unmodified, and the key is to set the compressor pressure
> fairly low, say 30-50 psi, and STOP before driving the pins too far.
> DAMHIK.    Also, important to lever the pins back against the string
> tension when starting the nailer, and align the pin with the hole axis,
> so as to not dig out the top of the hole in the pinblock.
>
> I am sure you will get better info from others who are more than
> occasional restringers, but this has worked well for me.
>
> Dave Smith
> SW FL
>
>     ----- Original Message -----
>     *From:* Bill Costanzo <mailto:pnotuner at rochester.rr.com>
>     I am going to attempt my first stringing job with a palm nailer
>     (done many the traditional 2 lb hammer way) and need an explanation
>     of how to modify the tip to get the proper pin height.  Someone
>     touched on this at one of the rebuilding classes in Rochester, but I
>     wasn’t at all clear about it.  Pictures would be nice, and any other
>     info on procedure and things to watch out for would also be greatly
>     appreciated. The piano is a small Baldwin grand, model E, and the
>     palm nailer is a cheapy from Harbor Freight, but seems to work alright.
>
>     Thanks, Bill Costanzo



To keep from driving them too deep, I always just stop driving
just short of going too deep. Always.

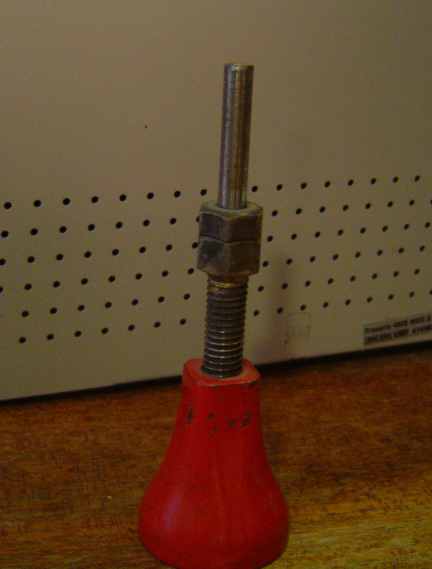

When I don't, I get out my modified screw jack (sort of an
un-screw jack). To use it, I block up as necessary underneath
with wood scrap, and turn the top end up into the pin hole
until it contacts the bottom of the pin, then another 1/4 turn
to add pressure. On top, turn the pin slightly CCW, then back
CW to where it was with your tuning lever, and it will ooze up
out of the block a bit like magic. Repeat the jacking and
oozing until satisfied with the pin height, then stop. Put the
jack away where you can find it the next time this never
happens, pretend it never happened this time, and get back to
work. This can be done either with or without string tension.

Enjoy,
Ron N
-------------- next part --------------
A non-text attachment was scrubbed...
Name: screw jack.jpg
Type: image/jpeg
Size: 11976 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060805/9358d480/attachment-0001.jpg
