Hi David,

>Has anyone ever modified the Baldwin SD-10 modified counterbearing set up
>with that fancy looking kazoo?

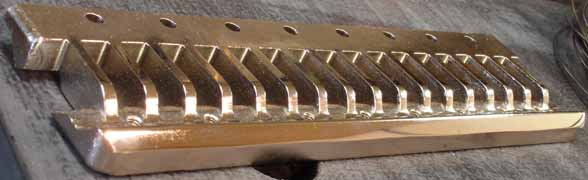

We've reshaped the bars with an angle grinder, followed by a die
grinder etc., to achieve a smaller radius.

>   It looks as though the counterbearing
>segment is a bit long for the angle of inclination yet changing it seems,
>well... any ideas, experience (especially with good results).

I agree its too long, but we decided to leave it with just a reshape.
We re-plated it with electroless nickel.



The modification was quite successful.

Best regards,
Ron O.
--
