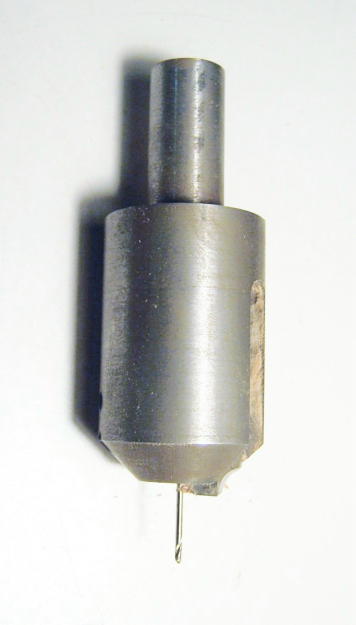

>> I'm looking for the bit that actually carves the >> recess in the part containing the center in the >> shape of a birds eye. so that the flange does not >> slide side to side much on the center. >> I can't seem to find one on google. Maybe there >> is a specific name for the part? >> >> Sincerely, >> >> Chris Rawson, www.Key-Leveling.com <http://www.Key-Leveling.com> > It would be a version of a rosette cutter, most > likely custom made. > Ron N I have a specially made one that's about 1" diameter, with a 1" long 1/2" shank. The cutter's just a 1/4" lathe tool bit you can grind with the profile you want and the right relief (but the slot's milled straight so there's no back angle), and the drill center and cutter are held in with setscrews. You probably can make a much simpler one - there's a nice article, "Souped-Up Spade Bits" in Fine Woodworking 47, July/August 1984 showing almost as elaborate profiles. Clark __________________________________________________ Do You Yahoo!? Tired of spam? Yahoo! Mail has the best spam protection around http://mail.yahoo.com -------------- next part -------------- A non-text attachment was scrubbed... Name: 167731527_5888b13d50_o.jpg Type: image/jpeg Size: 17016 bytes Desc: 2443256873-167731527_5888b13d50_o.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20070503/b6431bec/attachment-0001.jpg
