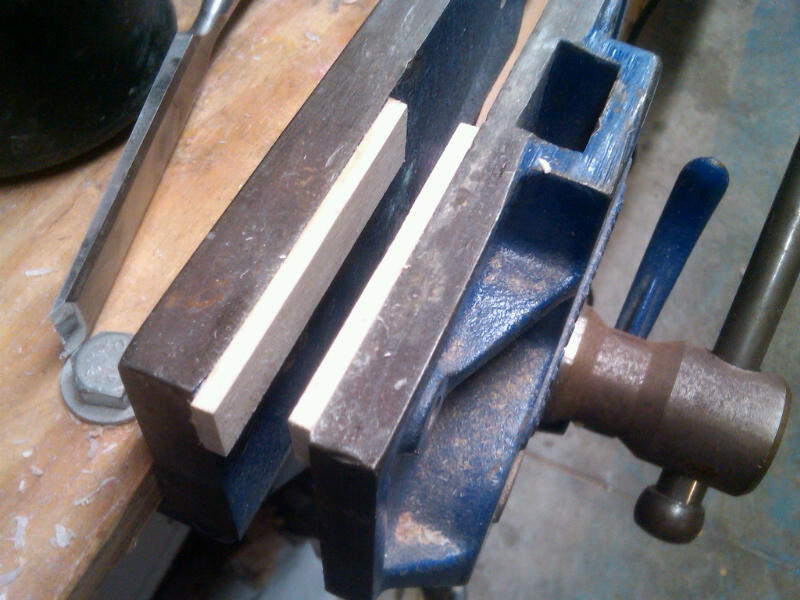

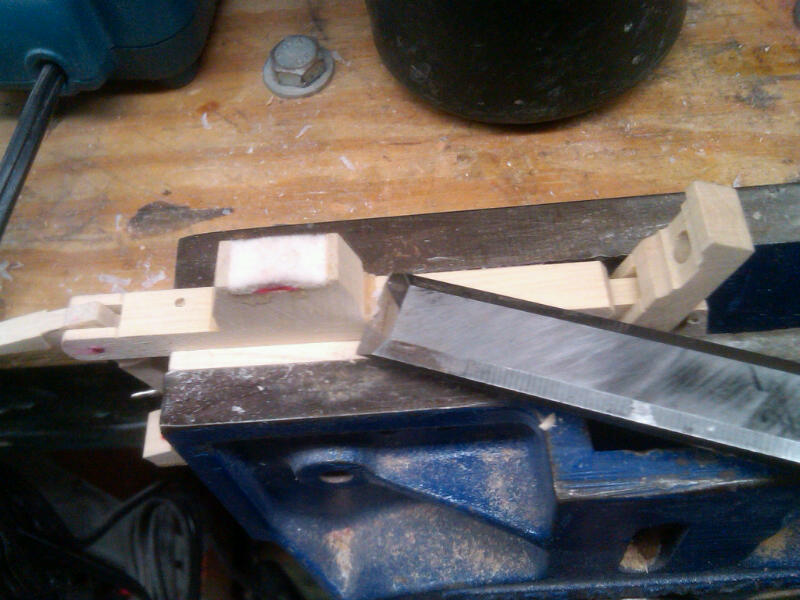

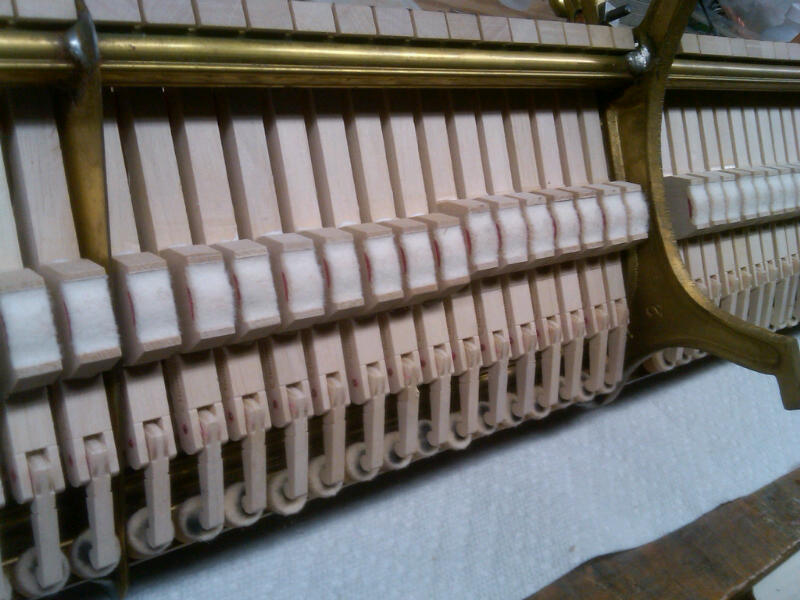

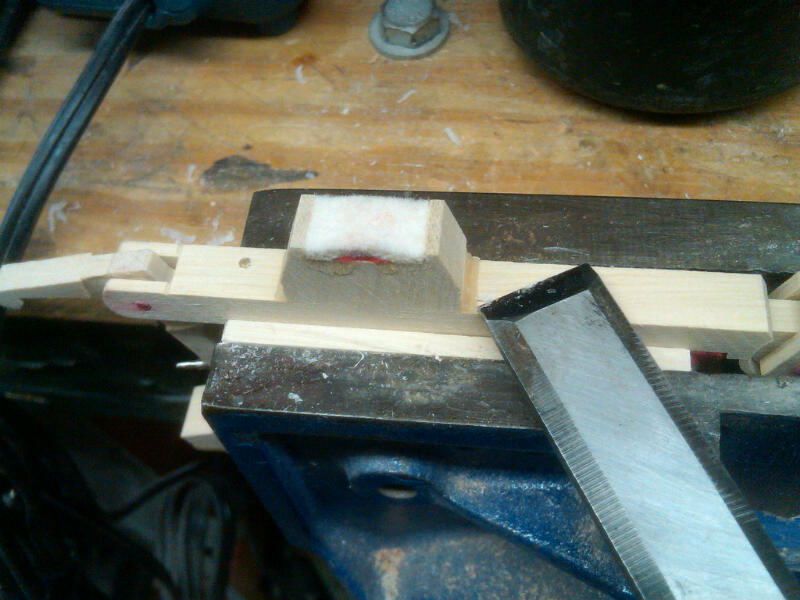

Caution, this has to do with pianos. Had to relocate a set of wippen heals after moving the capstan. Often I just cover the entire heal with felt if there's a problem with the new capstan position contacting the wooden edges of the heal. In this case I didn't want to do that so I wanted to figure out a way to remove the heal and relocate it. I could have just trimmed the entire heel off with a bandsaw and then bought a new set of heals but preferred to try and salvage what was there. In this case I needed a 4 mm move. I marked and drew a line that distance from the original heals first for indexing the gluing of relocated heal, you can see that a bit in the first photo. Then to remove the heal you first have to clamp the wippen in a vice. I used some two sided tape to attach these wooden strips so I could clamp that lower part of the wippen without interference from the wider flanges and posts (second photo). To remove them I took a sharp chisel and ran it under the thin glue bead at the edges--kind of rubbery stuff (third photo). Then with a very light tap on both sides the heal it comes right off. Safest to tap very lightly just until you hear the joint break on one side and then switch to the other side. Didn't have any tear out on any of the removals as these are mostly glued at the edges. After the heal is removed I cut off the nipple with a band saw--make sure you don't leave a high spot there, a bit low is ok since the heal will be held in place by the outer portion. A few swipes over a sheet of sandpaper to clean it up and then glued it back in place as pictured in the first photo. I found the easiest way to work was to flip the stack upside down and rotate it to a 45 degree angle (first picture kind of gives you an idea) with the flange screws up so you could just work across one at a time. Use a short block on the end of the stack to keep it in place. Takes a couple of hours. BTW this was a early accelerated action Steinway (as you can tell probably). A move to a 17 mm knuckle still left the ratio at about 6.1. I wanted something around 5.5 David Love www.davidlovepianos.com Just an aside--I'd love to see the ability to post this way to the new list put in place somehow--if possible. This was fairly painless and easy. But a discussion isn't really needed. -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00277-20110719-1434.jpg Type: image/jpeg Size: 79908 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110720/d09728f6/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00280-20110720-1439.jpg Type: image/jpeg Size: 86910 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110720/d09728f6/attachment-0005.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00282-20110720-1440.jpg Type: image/jpeg Size: 85792 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110720/d09728f6/attachment-0006.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG00283-20110720-1440.jpg Type: image/jpeg Size: 86242 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110720/d09728f6/attachment-0007.jpg>
