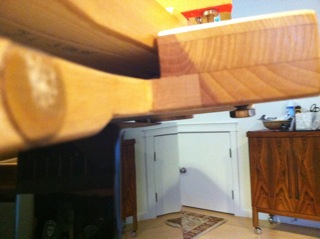

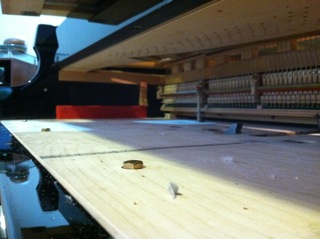

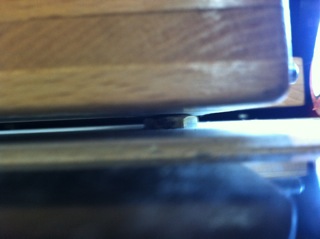

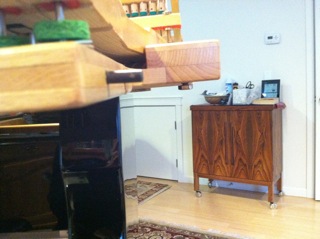

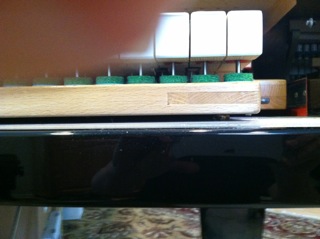

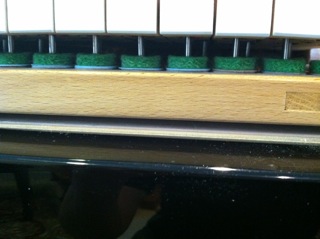

Forwarded email ......... I suggested retracting all the glides back until they don’t touch the keyframe and then starting from the middle and working outward. Balance rail first and then the front rail ....... I think. From: Linda Scott Sent: Friday, December 07, 2012 7:49 AM To: larry_fisher at pdxtuner.com Subject: Estonia concert grand keyframe glides I am unfamiliar with the regulation of the keyframe glides in this Estonia concert grand. There are front rail glides in the key bed, sticking out really far, and not particularly user-friendly for sliding the action in-and-out. The balance rail glides are also out really far, but it seems like that must be correct, since the usual amount of keypin is sticking out of the top of the key mortise. Hardly any front rail punchings, though, which makes me wonder if this has been messed with and needs some regulation. Not a completely solid feel on hard blows, either. Anybody know the procedure for doing this from scratch? IMG_1128 IMG_1129 front rail glides sticking way up hardly any punchings yet this looks about right keybed look how far those balance rail glides are sticking out of the keyframe IMG_1135 -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 23779 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0007.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 19536 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0008.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 23962 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0009.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 26809 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0010.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 27912 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0011.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 27464 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0012.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 26071 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121207/66c5498d/attachment-0013.jpeg>
