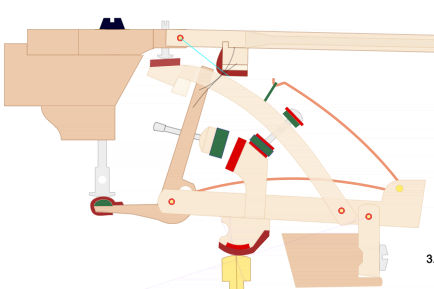

At 3:57 pm -0600 12/9/06, Fred Sturm wrote: >The major friction in the action, though, is knuckle to jack/rep >top, which is far from the convergence point except in Overs' design. Strictly not so. Here is Herrburger's action from 1898, which was imitated with variations but no improvement by one or two other action makers. Note that the two arcs are as near to touching as can be throughout the descent of the hammer into check. JD -------------- next part -------------- An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/caut.php/attachments/20060913/c30179d3/attachment-0001.html -------------- next part -------------- A non-text attachment was scrubbed... Name: P719D9172.png Type: image/png Size: 30709 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060913/c30179d3/attachment-0001.png
