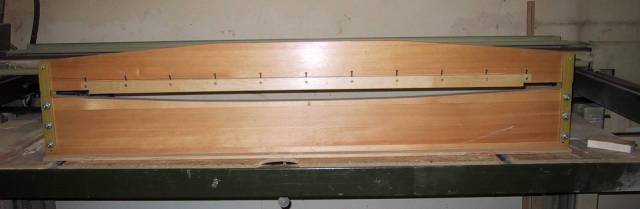

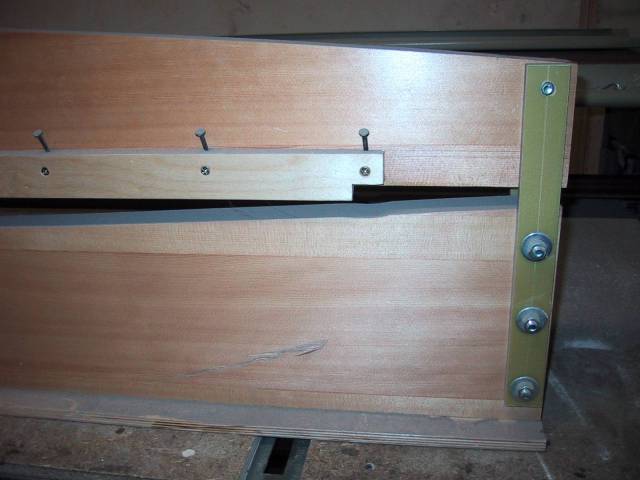

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment ------=_NextPart_001_0096_01C35CD0.ECDDFCF0 Check the Journal. These have been discussed and written about several = times. Most recently, I think, by Clair Davies (sp?). Aside from the = fact that he recommends using far more air pressure than is either = required or advisable, this is a good place to start. I say "start" = because most everyone seems to want to modify these things to suit.=20 I started with a go-bar press back in the 70s but abandoned it after one = bar broke, starting a chain reaction that had bars going every which way = and damaging the soundboard panel enough that I ended up replacing it. = I've use a variety of air presses since then and would never go back. Two photos are attached. Del ----- Original Message -----=20 From: Rob G.=20 To: pianotech@ptg.org=20 Sent: August 07, 2003 10:04 AM Subject: Pneumatic Soundboard Press Is anyone aware of some detailed plans available for a good pneumatic = soundboard press? (the type with compressed air in fire hoses for = tension). I am researching for the press planned for the new shop. I = am reasonably familiar with the go-bar type and have a proven design for = one but I want to look at both types. What are the known flaws/problems = related to pneumatic presses? Does anyone here use one? Any disaster = stories? Curious, Rob Goodale, RPT Las Vegas, NV ------=_NextPart_001_0096_01C35CD0.ECDDFCF0 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/41/ec/dc/b5/attachment.htm ------=_NextPart_001_0096_01C35CD0.ECDDFCF0-- ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: New Rib Press - 3 - Small.jpg Type: image/jpeg Size: 23445 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/ba/5d/97/b7/NewRibPress-3-Small.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: New Rib Press - End 1 - Small.jpg Type: image/jpeg Size: 46768 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/76/88/11/1d/NewRibPress-End1-Small.jpg ---------------------- multipart/mixed attachment--
