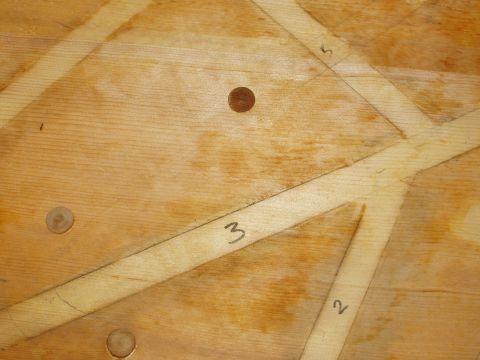

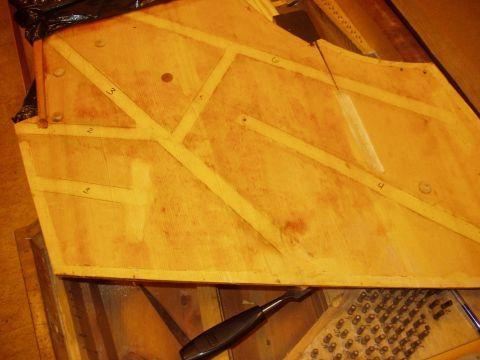

---------------------- multipart/alternative attachment Hi Joe, and whoeverelse Here is a few more pics from this project. These are from getting the ribs off. So far the whole darn thing has come apart with no damage at all. There's only one rib left on the thing, and that will come off tomorrow. I'll think I'm going to go ahead with the rib pattern I posted the other day, and crown the ribs very moderately... to about 90' radius. I'll use the existing panel after steaming it into a mild positve crown shape and repairing the one crack. Anyways... here they are. [Image] Showing the ribs soaking. Strips are soaked in water and 96 % tech spirits. [Image] [Image] Things came up clean as a whistle.. no damage whatsoever. Cheers RicB -- Richard Brekne RPT, N.P.T.F. UiB, Bergen, Norway mailto:rbrekne@broadpark.no http://home.broadpark.no/~rbrekne/ricmain.html http://www.hf.uib.no/grieg/personer/cv_RB.html ---------------------- multipart/alternative attachment --------------3E4C21ECDD3C2B524F759A10 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/3c/b8/5e/23/attachment.htm --------------3E4C21ECDD3C2B524F759A10 A non-text attachment was scrubbed... Name: C:\\DOCUME~1\\RICHAR~1\\LOCALS~1\\Temp\\nsmailG7.jpeg Type: image/jpeg Size: 34496 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/05/05/13/82/nsmailG7.jpeg --------------3E4C21ECDD3C2B524F759A10 A non-text attachment was scrubbed... Name: C:\\DOCUME~1\\RICHAR~1\\LOCALS~1\\Temp\\nsmail38.jpeg Type: image/jpeg Size: 35571 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/14/b2/70/a9/nsmail38.jpeg --------------3E4C21ECDD3C2B524F759A10 A non-text attachment was scrubbed... Name: C:\\DOCUME~1\\RICHAR~1\\LOCALS~1\\Temp\\nsmailAR.jpeg Type: image/jpeg Size: 34610 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/3d/1b/1a/94/nsmailAR.jpeg --------------3E4C21ECDD3C2B524F759A10-- ---------------------- multipart/alternative attachment--
