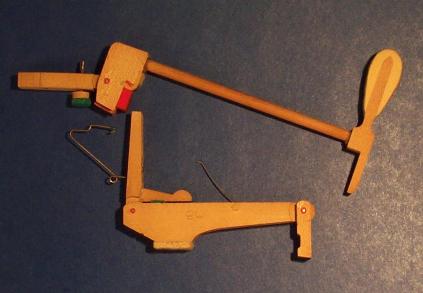

---------------------- multipart/mixed attachment Joseph, Fantastic! I'll contact you off-list to see if you'd care to part with some of the springs and a copy of the instruction sheet. Since several folks expressed interest, attached is a photo of the wippen/jack assembly (with the repetition spring attached to the jack) and the hammer assembly, and a photo of the piano (Haines Brothers serial number 78173). I guess you could call the first photo an "action photo" of a 1931 Haines baby grand! 78^) Greg P.S. My apologies in advance if I'm using wrong terminology for these parts. I'm anxious to learn, so please don't hesitate to correct this neophyte! On Tue, 2003-10-28 at 08:02, Joseph Garrett wrote: > Greg said: "None of these sources show the same kind of action that I find > in this > Haines Brothers piano, but I've come to realize that the action is > basically the same as the action for square grands....." > > Greg, > No it's not the same. Square grand actions are Single Escapement. The Haines > Grand Action is Double Escapement. I have springs for this action, NOS. Also > an instruction sheet that accompanied them. I suspect the whole shebang came > from Trefz Piano Supply. I haven't done one of those for years, so I'm very > rusty in the in/outs of this action. > Best Regards, > Joe Garrett, RPT, (Oregon) > Captain, Tool Police > Squares Are I > > > _______________________________________________ > pianotech list info: https://www.moypiano.com/resources/#archives ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: HainesBrosActionPieces1931_.jpg Type: image/jpeg Size: 22055 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/0d/d2/bf/7d/HainesBrosActionPieces1931_.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: HainesBrosBabyGrand1931_.jpg Type: image/jpeg Size: 61588 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/46/22/00/a9/HainesBrosBabyGrand1931_.jpg ---------------------- multipart/mixed attachment--
