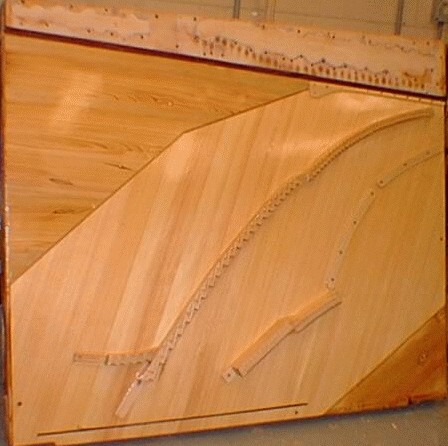

---------------------- multipart/mixed attachment Here is a picture of an insert. In this case I made the insert in two=20 pieces - one for the long bridge strings and one for the bass. I made=20 the edges irregular to preserve the original plate screw holes and yet=20= get new pinblock material at each tuning pin hole location. I routed=20 out the tuning pin field and then simply cut the pinblock to fit=20 loosely. The whole system is epoxied into place. I also=A0epoxied a=20 number of 1/2-inch and 3/4-inch dowels through the original block and=20 the new pinblock material through into the backposts. Pretty solid=20 setup I should think. =A0 Terry Farrell =A0 ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Pinblock Insert.jpg Type: image/jpeg Size: 67939 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/da/e1/f3/db/PinblockInsert.jpg ---------------------- multipart/mixed attachment--
