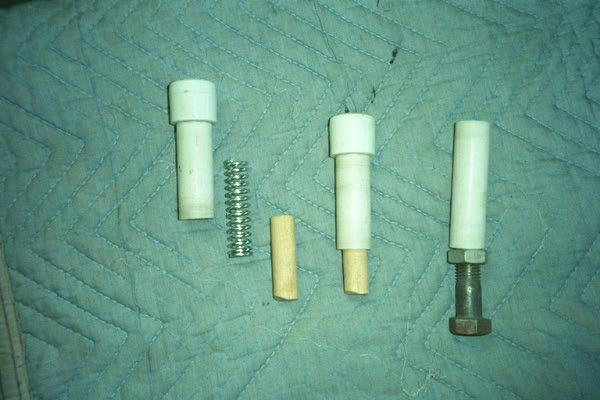

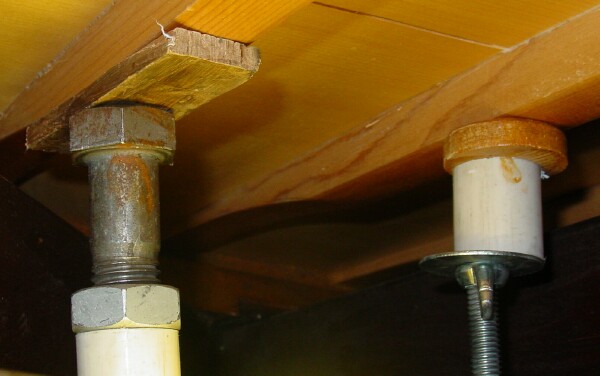

---------------------- multipart/mixed attachment --=====================_64950313==.ALT The pressure devices and constructed of 3/4" PVC pipe, end cap, spring and a wooden dowel. The dowel is a spring-loaded plunger whose length is determined by the depth of the rim and the amount of pressure you want to induce. Alternatively, I have discovered that a 3/8" threaded rod with a nut effects a more easily adjustable plunger, the rod fits inside the colis and the nut is a collar to adjust length/tension. Another execution is PVC pipe with a nut and bolt. But I like the self-compensating aspect of the spring-loaded plungers when multiple applications are involved. Jon Page --=====================_64950313==.ALT An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/7c/98/87/aa/attachment.htm --=====================_64950313==.ALT-- ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Sprngprss.jpg Type: image/jpeg Size: 48104 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/7d/74/1d/49/Sprngprss.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: support.jpg Type: image/jpeg Size: 58548 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/8f/ef/28/9d/support.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Screwjack.jpg Type: image/jpeg Size: 156812 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/e5/08/a2/b7/Screwjack.jpg ---------------------- multipart/mixed attachment--
