Short Capstan

[Ron Nossaman]

> I'm looking for sets of capstans that are like the one pictured (sorry it's
> blurry but I can't seem to get the picture in focus).  The overall length
> (the important dimension) is about 17mm as you can see.  Let me know if you
> have anything like it.
>
> David Love

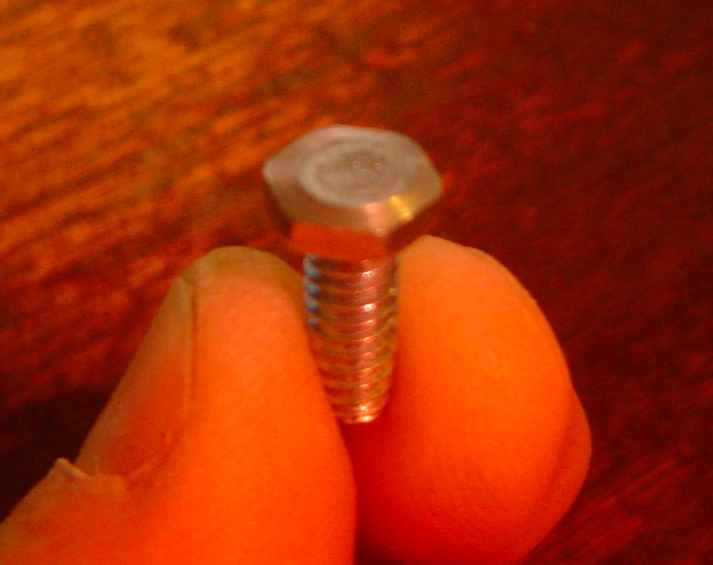

Back action capstans? I'm currently using 10/24 x 1/2" hex

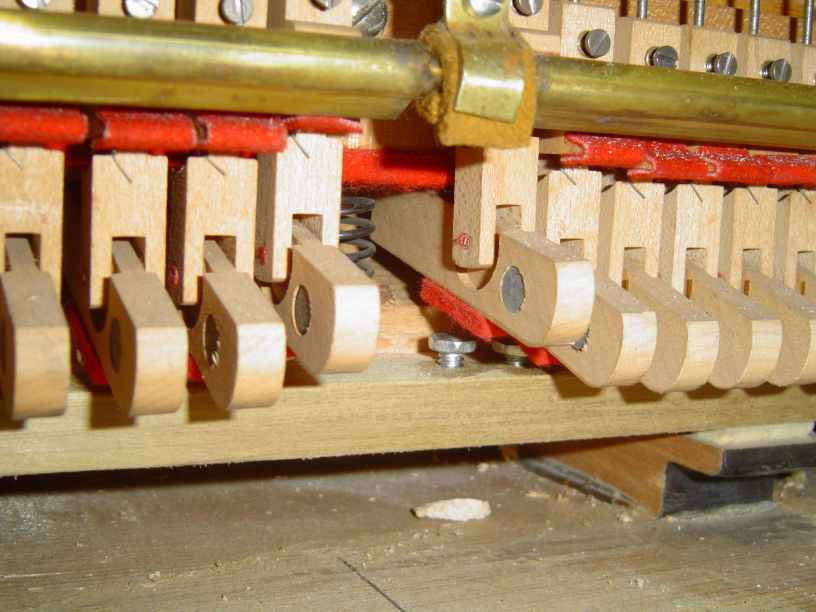

head bolts. Total length about 15mm, low profile head so
there's plenty of room to work with under the damper lever
without having to cut the tray down much, leaving plenty of
threads in the tray. These had a raised ridge around the head
perimeter which I had to remove (pain in the butt), but they
look like they'll work fine.

Ron N
-------------- next part --------------
A non-text attachment was scrubbed...
Name: damper capstan.jpg
Type: image/jpeg
Size: 44175 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/5faa4be2/attachment-0002.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: damper capstan 2.jpg
Type: image/jpeg
Size: 17223 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20060505/5faa4be2/attachment-0003.jpg
