Pinblock separation

paul bruesch paul at bruesch.net
Thu Feb 28 20:12:24 MST 2008


I was doing what started out as a 35c pitch raise today on a 1969 S&S
console. Room was 71F and 15%RH. Musical, elderly owners.  About in octave
5, I heard a kinda thunk noise that sounded like it came from below. Removed
knee board, looked around, saw nothing amiss near as I could tell.  Then

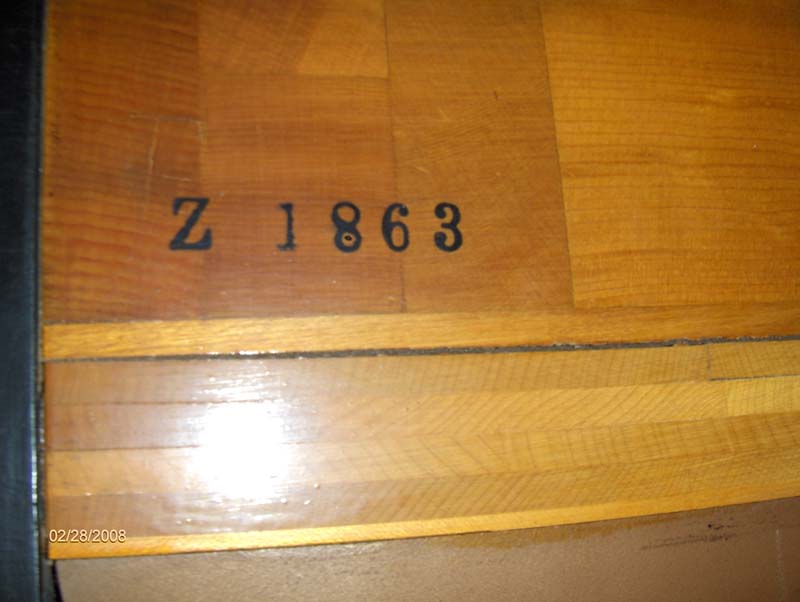

noticed the crack between the pinblock and back at the far bass end. At the
time, I wasn't in the habit of checking for such things prior to starting a
tuning (my really bad bad) so I'm not certain whether it was there before.
(Yes, I'll be checking that before EVERY tuning from here on out!)

Decided to press on.

Discovered that the notes I'd just tuned were very flat, and the 35c I'd
been pitch raising now was more like 80c.  As I completed my PR pass the top
6 or 8 notes were close and required very little overpull. The low bass was
also still close, but flat.

Could this fairly short and narrow (about 12" x < 1/16 at widest point)
separation have that dramatic an effect? The separation did not change from
the time I first noticed it until I left after speaking to the owners (at
least 1/2 hour.)  Could the thunk noise have been something else that would
cause this? I think cracked plate, but from all the reports I've read here
that is more like a shotgun blast. This thunk was like dropping a 4" piece
of 2x4 onto the bottom board.

Thanks,
Paul Bruesch
Stillwater, MN
