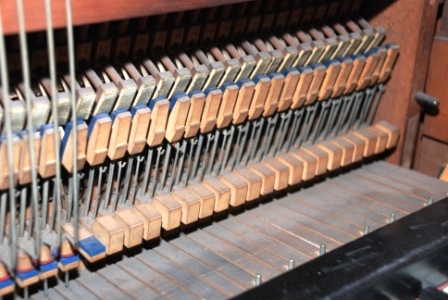

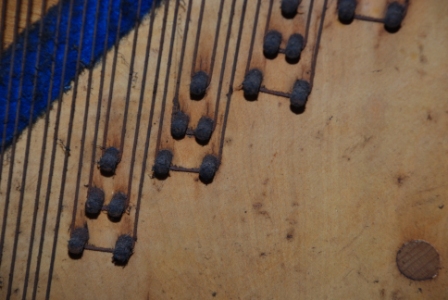

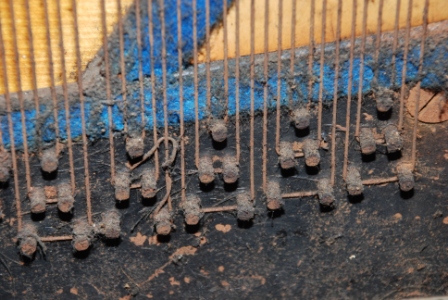

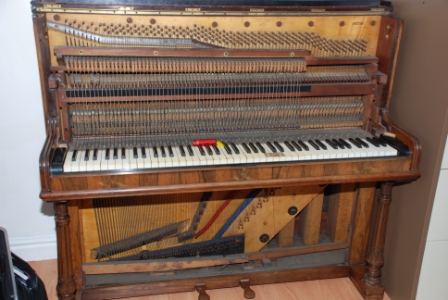

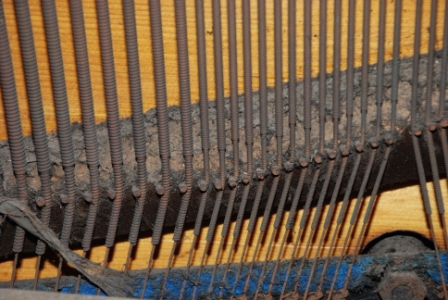

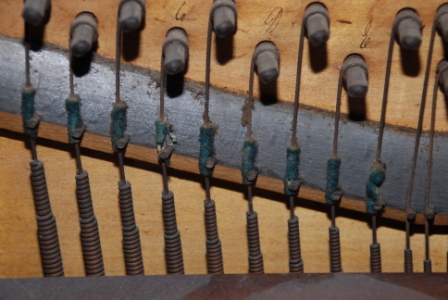

Old broadwood uprights are always interesting to encounter - they experimented so much! Today I checked out a Broadwood cottate upright from about 1886 and was fascinated byh the treble stringing patters. Also the little cloth sleeves in the bass strings where they pass over the top bridge pins (and the wound length going right over the bass bridge). Also the ncie feature of the high treble wippens having extra mass to compensate for not having the weight of dampers there. This old cottage-type upright has continuous flanges, and appears to have no metal frame at all. Best regards, David. -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood bass string sleeves.jpg Type: image/jpeg Size: 116644 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0007.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood bass strings.jpg Type: image/jpeg Size: 133722 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0008.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood birdcage.jpg Type: image/jpeg Size: 119606 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0009.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood treble stringing 1.jpg Type: image/jpeg Size: 138019 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0010.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood treble stringing 2.jpg Type: image/jpeg Size: 121823 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0011.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Broadwood treble wippens.jpg Type: image/jpeg Size: 147630 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0012.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Odd string braid.jpg Type: image/jpeg Size: 135888 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20130208/8c9ce0e7/attachment-0013.jpg>
