[pianotech] Size of Pinblock Drill bit?

Noah Frere noahfrere at gmail.com
Thu Mar 7 06:55:41 MST 2013


Coolest thing i ever saw


On Thu, Mar 7, 2013 at 5:46 AM, Terry Farrell <mfarrel2 at tampabay.rr.com>wrote:

> Ummmmm, probably about 13 or 14 years ago. Looks like their lowest-end
> drill press runs about $95 now. I did get mine on sale - so it doesn't look
> like they've gone up in price all that much.
>
>
> http://www.sears.com/tools-bench-stationary-power-tools-drill-presses/s-1021248
>
> Now I'm not suggesting that it's not worth it to buy a
> larger/higher-quality drill press - more stable, more power, deeper throat,
> etc., etc. I do have a larger one now for the benchtop, but I still do use

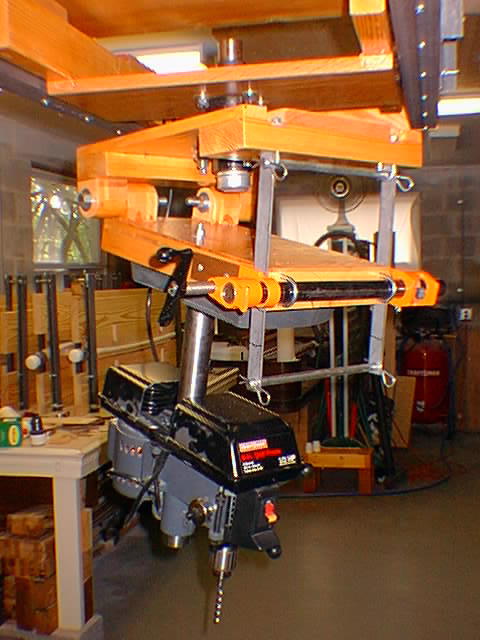

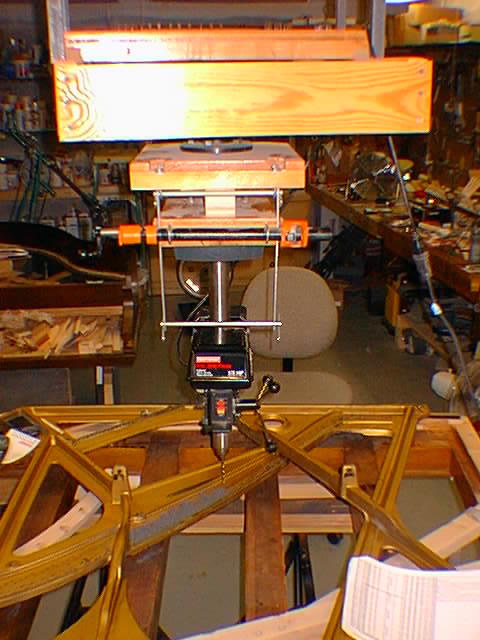

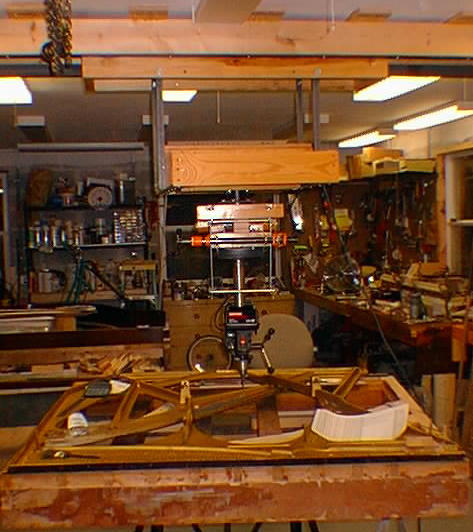

> my little Sears fellow for drilling pinblocks and plates as I have it
> mounted upside-down on my overhead drill press.
>
>
>
>
> Tilts to any angle, rotates 360 degrees, vertical adjustment about 8
> inches, X-direction travel is about 8 feet and Y direction travel is about
> a foot. A goofy thing that I'd likely not ever build again if I moved to a
> new shop (would build a floating press, ala Ron N), but as long at it is
> here, it works very well and I really enjoy it.
>
> Except when I don't have the drill mounted on it and I walk into it - the
> base is about 5' 8" off the floor, and I'm 6' 0". Ouch!
>
> Terry Farrell
>
> On Mar 6, 2013, at 11:15 PM, Noah Frere wrote:
>
> enlightening. I had already planned on upgrading the chuck, but never
> imagined a drill press could be bought for so cheap. Of course that was
> like many many years ago...
>
>
> On Wed, Mar 6, 2013 at 8:57 PM, Terry Farrell <mfarrel2 at tampabay.rr.com>wrote:
>
>> "I actually don't have a drill press yet. If anyone has any mid-priced
>> suggestions..."
>>
>> I've been using a $79 Sears special for many years. I upgraded it with a
>> high-quality (low run-out) chuck. It has served me very well. A larger,
>> heavier drill press would always be welcome - but you can get by with a
>> small one if you wish. Just be sure to put a good chuck on it - I think
>> mine is a Jacobs and cost around $100.
>>
>> Terry Farrell
>>
>>
>> On Mar 6, 2013, at 4:38 PM, Noah Frere wrote:
>>
>> Will, thanks for the "feed"back.
>>
>> the old pins were only .265", smaller than 1/0. I prefer to keep it in
>> that range. You said "You may find that if you drill for 2/0 pins and
>> use a 1/0 pin, your block may well be too loose." I would not drill for
>> 2/0 pins. I will do as you suggest, and order all 3.
>>
>> I actually don't have a drill press yet. If anyone has any mid-priced
>> suggestions, feel free :)
>>
>>
>
>
