[CAUT] add capstans to tray?

[Ron Nossaman]

I sent this yesterday, and it didn't show up yet. I just
checked the file size. Yup, forgot I had compression set to
zero for something else. So here it is again, with a
compressed photo.


 > Ron,
 >
 > can you remind me the how's & why's on this, or point me
back to a previous
 > discussion, PTJournal article, etc.?
 >
 > thanks,
 > Mark Cramer,RPT


Hi Mark,
The why is to make it easier to time and touch up damper lift
with the pedal without having to move the wire and realign, or
shim. The how is taking off the old felt from the tray,
ripping a rabbet off of the top surface if necessary to make
room for the capstan, being mindful of how much wood is left
to hold the threads, adding strips of felt to the underlevers,

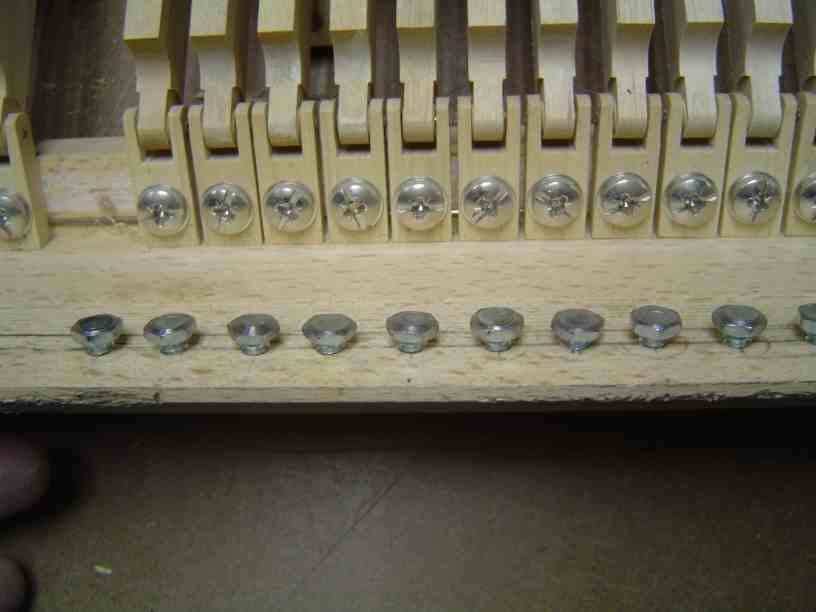

and installing capstans. Mark where you want 'em on the tray,
drill holes, and screw them in. I use these 10/24 x 1/2"
indented hex head screws. Taking the raised edge off of the
head with the lathe leaves a nice short hex head capstan
that's short enough I often don't need to rip the rabbet.

I don't know of a Journal article, though there may be one.
Ron N
