[CAUT] hitch pin loop tool

Ron Nossaman rnossaman at cox.net
Mon Feb 11 17:27:45 MST 2008


> I have always duplicated hitchpin loops on single strings with my round
> needle nose and a vice-grip.  It seems to me there was a simple tool
> using a dowel and a screw?   I'm talking about field work here.

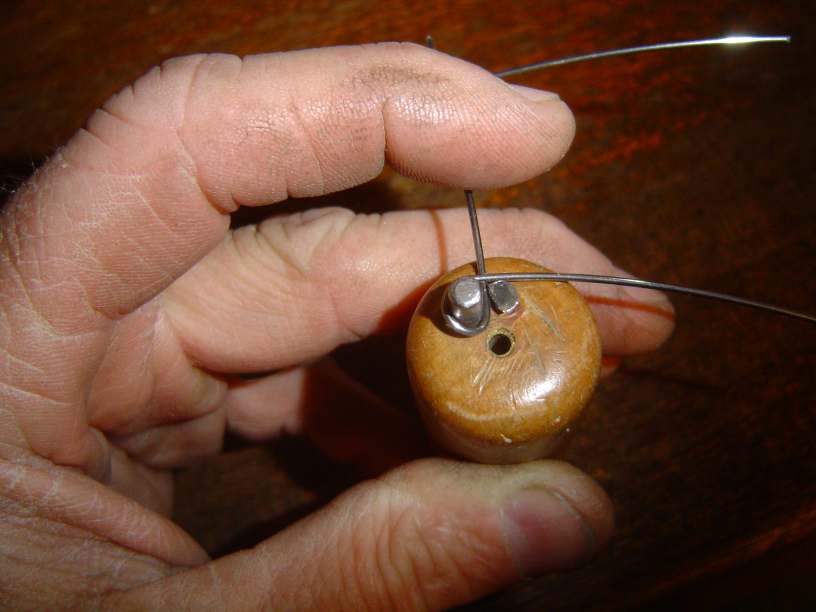

I've carried this in my tool case for thirty years. The #7
wood screw with the top cut off is just about right for most
hitch pins, and is easy enough to turn too far and pull it

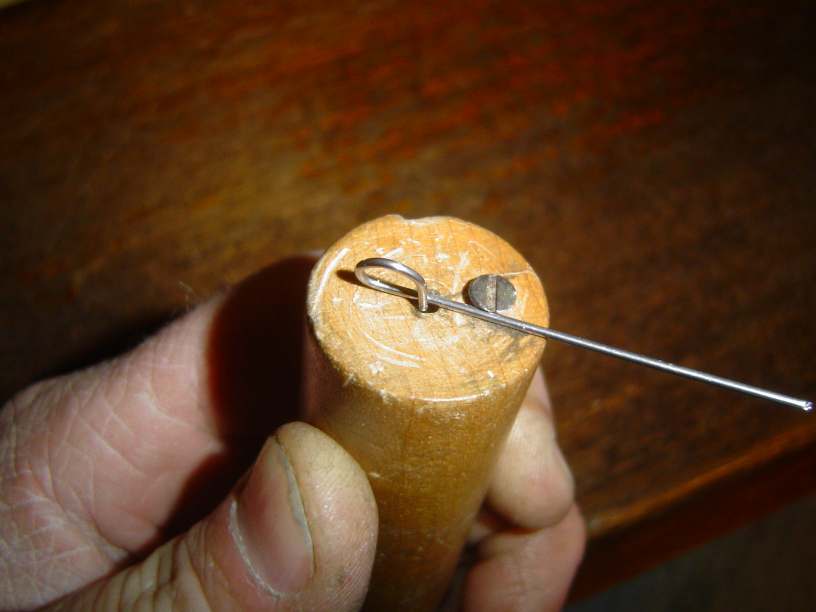

back to open the loop further. The other end has the screw for
winding the coil, with a pair of pliers holding the loop.

Ron N
-------------- next part --------------
A non-text attachment was scrubbed...
Name: make loop.jpg
Type: image/jpeg
Size: 36521 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/caut.php/attachments/20080211/ce7983b1/attachment-0002.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: wind coil.jpg
Type: image/jpeg
Size: 29018 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/caut.php/attachments/20080211/ce7983b1/attachment-0003.jpg
