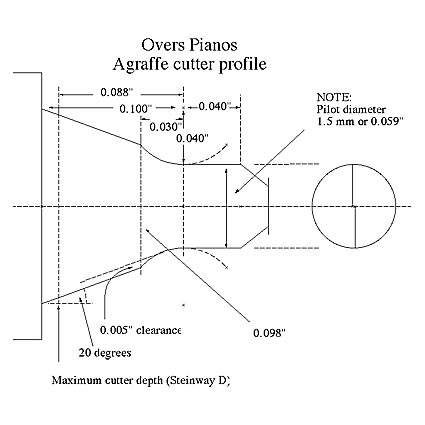

---------------------- multipart/related attachment --============_-1224967358==_ma============ Terry, Roger and list, Included below is a drawing of the agraffe cutter profile we have been using for the past few years. We fax this drawing through to our local tool and cutter grinding man, ordering four at a time (double ended). As Roger said earlier, you cut from both sides of the agraffe. We use a small milling machine with depth stop control, to ensure that we end up with a donut shape in the centre of the agraffe. The easy way to check this is to cut a test agraffe in half. Regards, Ron O -- _________________________ Website: http://www.overspianos.com.au Email: mailto:ron@overspianos.com.au _________________________ --============_-1224967358==_ma============ An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/50/32/9a/73/attachment.htm --============_-1224967358==_ma============-- ---------------------- multipart/related attachment A non-text attachment was scrubbed... Name: agrcut.jpeg.jpg Type: image/jpeg Size: 35356 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/3c/67/fa/b8/agrcut.jpeg.jpg ---------------------- multipart/related attachment--
