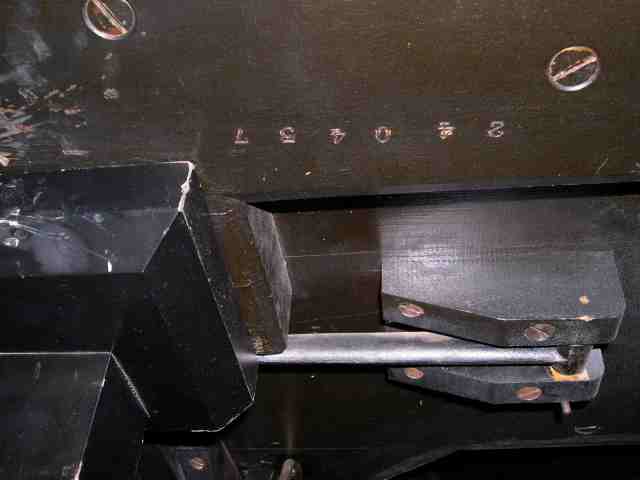

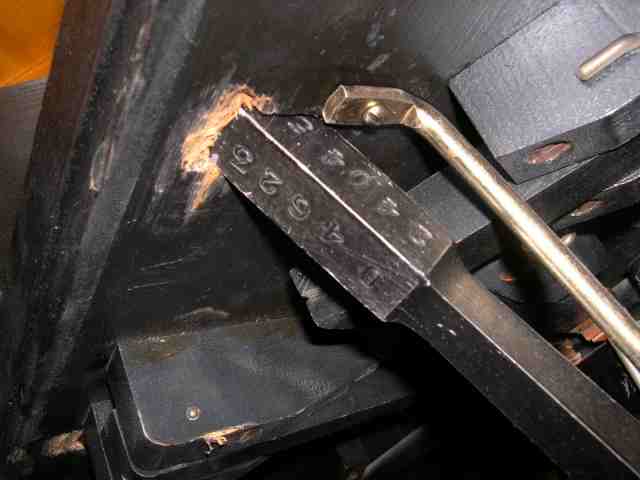

---------------------- multipart/mixed attachment At 7:31 PM -0500 7/31/04, Keith McGavern wrote: >There is one other place that hasn't been mentioned. The Steinway >diagram I have calls it the crossblock. > >This is above the pedal lyre where the wooden braces connect. It >won't be very visible, and I have seen serial numbers there on other >Steinway grands. Tom, List, I decided to check a few Steinway grands and discovered I have incorrectly identified the location mentioned above. So here are two pics: one showing the correct location which is called Bottom Bridge on the Steinway & Sons Grand Piano Cross Section diagram, and the other, the lyre stick location. Keith -- Keith McGavern Registered Piano Technician Oklahoma Chapter 731 Piano Technicians Guild USA ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: steinwayserial#locations[_1.jpg Type: image/jpeg Size: 21089 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/e6/d5/e9/77/steinwayseriallocations_1.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: steinwayserial#locations[_2.jpg Type: image/jpeg Size: 26922 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/6d/bc/98/0b/steinwayseriallocations_2.jpg ---------------------- multipart/mixed attachment--
