Pinblock drill picture.

[Carl Meyer]

This is a multi-part message in MIME format.

---------------------- multipart/mixed attachment

------=_NextPart_001_0032_01C4CB11.D1DB28A0

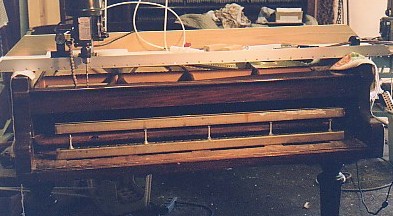

Here's the set up.  I use the vortec to keep the bit cool.  Tilt can be =
done by putting a suitable dowel under the front or rear of the sliding =
drill mount.  The left and right movement is by sliding the drill.  The =
fore and aft is the towels under the ends of the track.  I suppose it =
could be used on an upright but I haven't done it yet.

Next time I use it I will do the two pass method to prevent lifting of =
the drill for better accuracy.

Carl Meyer Ptg assoc
Santa Clara, Ca.



  ----- Original Message -----=20
  From: Richard Oliver Snelson=20
  To: Pianotech=20
  Sent: Monday, November 15, 2004 10:59 AM
  Subject: Re: Pinblock drill picture.=20


  Yes it is Dale. I'll set it up latter this week and get pictures. I =
use an old grand keybed across the top of the piano for the drill to set =
on. I have the plate out on this piano so can't show bit extension, but =
you will get the idea. I use the longer bits that Pianoteck has for sale =
and reach is not a problem. The drill and motor are free (you can =
adjust) to pivot around a center post. The base can be adjusted for a =
lot more angle (tilt) than one would want. More later. Rich
  Richard Oliver Snelson

    ----- Original Message -----=20
    From: Erwinspiano@aol.com=20
    To: pianotech@ptg.org=20
    Sent: Monday, November 15, 2004 8:47 AM
    Subject: Re: Pinblock drill picture.=20


       Hi Richard
      Is this a drill the block in the piano set up? If so pleas show =
this if possible
         Dale E.
      I'll take a couple more with a different camera and send them =
directly to=20
      you. Jeannie wants them for the journal also. The mount is a =
little more=20
      complex than the picture show as the drill post has been inverted =
and sits=20
      on a piviot post attached to the base. I want to also tell the =
source of the=20
      drill chuck extension which comes from Garrett Wade. Rich

      Richard Oliver Snelson
