Baldwin Gauge?

[David Skolnik]

---------------------- multipart/related attachment

--Boundary_(ID_6MuXo941W6Ep1pDDrbUnKg)
Gentles -

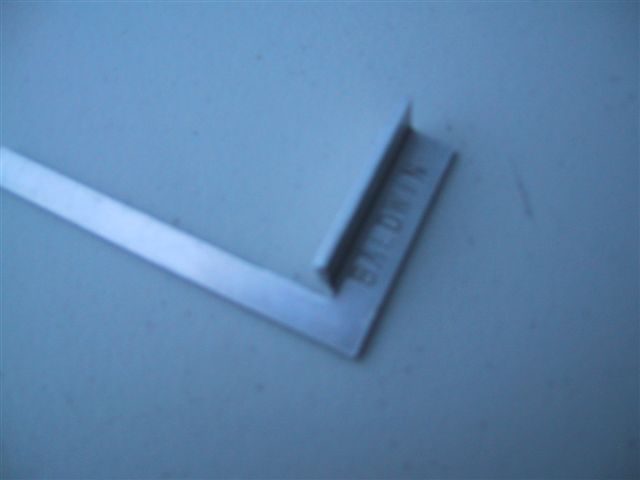

All due respect, take another look at the photo.  In fact, this one is not
the one they made to check shank to molding dimension.  Rather this was
designed to check the  molding / string angle with the hammer pulled up to
contact string.  The folded-over part of the shorter length would sit on
top of the string (Baldwin name would be upside down), and the longer
length would be brought adjacent to the side of the subject hammer (which
would have previously had a line drawn bisecting the molding).  The gauge
would indicate whether the hammer is striking at 90 degrees or not.

Del - you must be too busy unpacking.  What an unenviable task!

Best to all.  Remember to use your ear plugs if you end up at the fireworks!

David Skolnik




<file://c:\docume~1\david\applic~1\qualcomm\eudora\attach\july%203.05%20036%20(2).jpg>
[]
<file://c:\docume~1\david\applic~1\qualcomm\eudora\attach\july%203.05%20036%20(2).jpg>

july 3.05 036 (2).jpg










At 09:21 PM 7/3/2005 -0700, you wrote:
>It is a convention give-away tool used to determine whether or not a
>hammerhead is square to the hammershank. Simply lay the short, bent over
>part on top of the hammershank, move it so that the long, narrow part runs
>along the hammerhead molding and see that the hammerhead is square to the
>shank.
>
>When replacing hammers it is used to draw a line along the centerline of
>the original hammerhead molding on the sample hammerheads (those left in
>place to align the new hammerheads to). This can be quite helpful if the
>original hammerheads have been badly mis-shaped over the years.
>
>Del
>
>
>
>
>----------
>From: pianotech-bounces@ptg.org [mailto:pianotech-bounces@ptg.org] On
>Behalf Of Jack Houweling
>Sent: July 03, 2005 9:04 PM
>To: pianotech
>Subject: Baldwin Gauge?
>
>Hello,
>I found this in one of my tool boxes and would like to know what it is? It
>is aluminum, has Baldwin written on it and is about three inches
>long.  Looks like some sort of gauge but I'm not sure.
>
>Thanks,
>Jack Houweling
>
>
>----------
