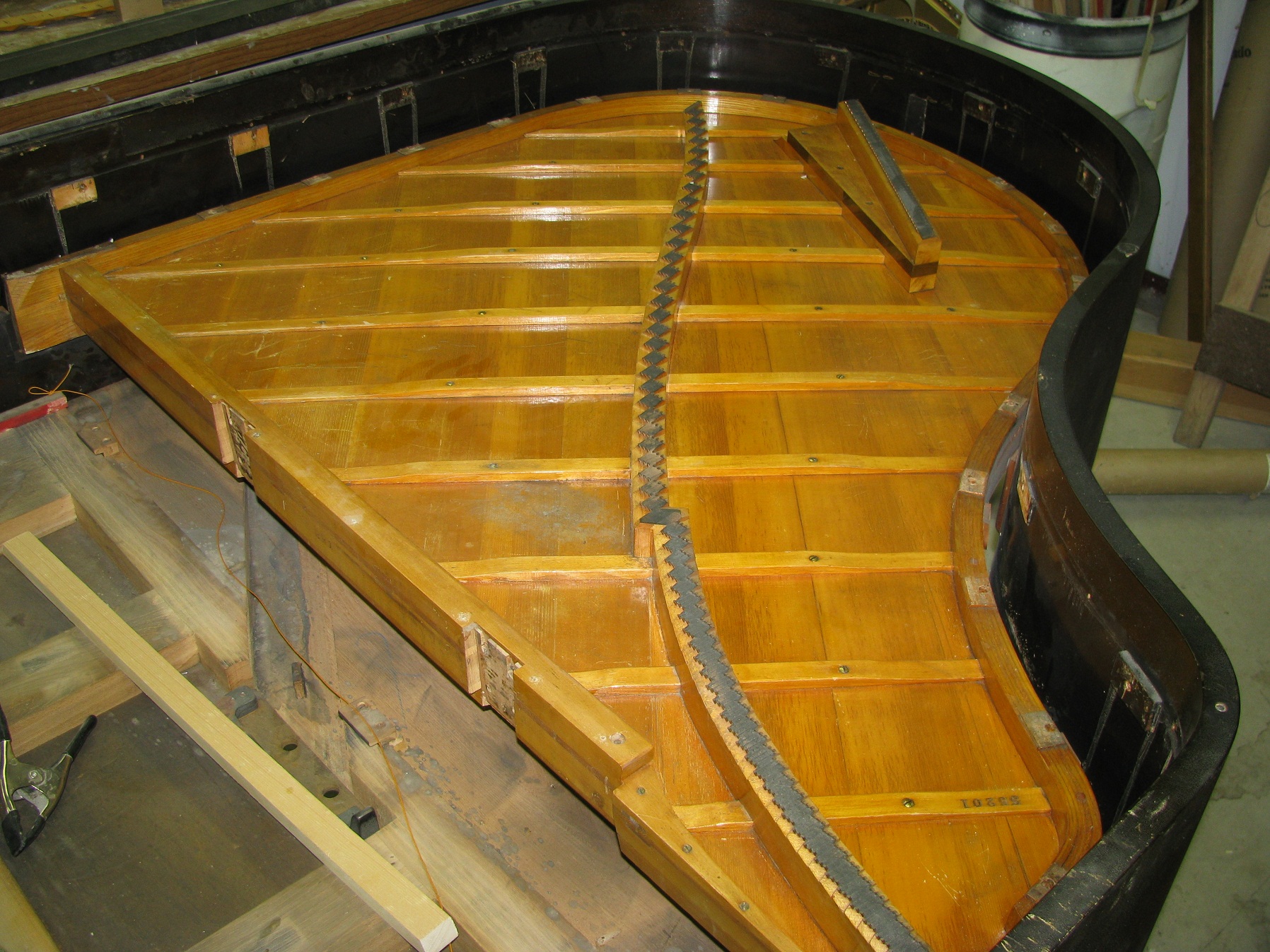

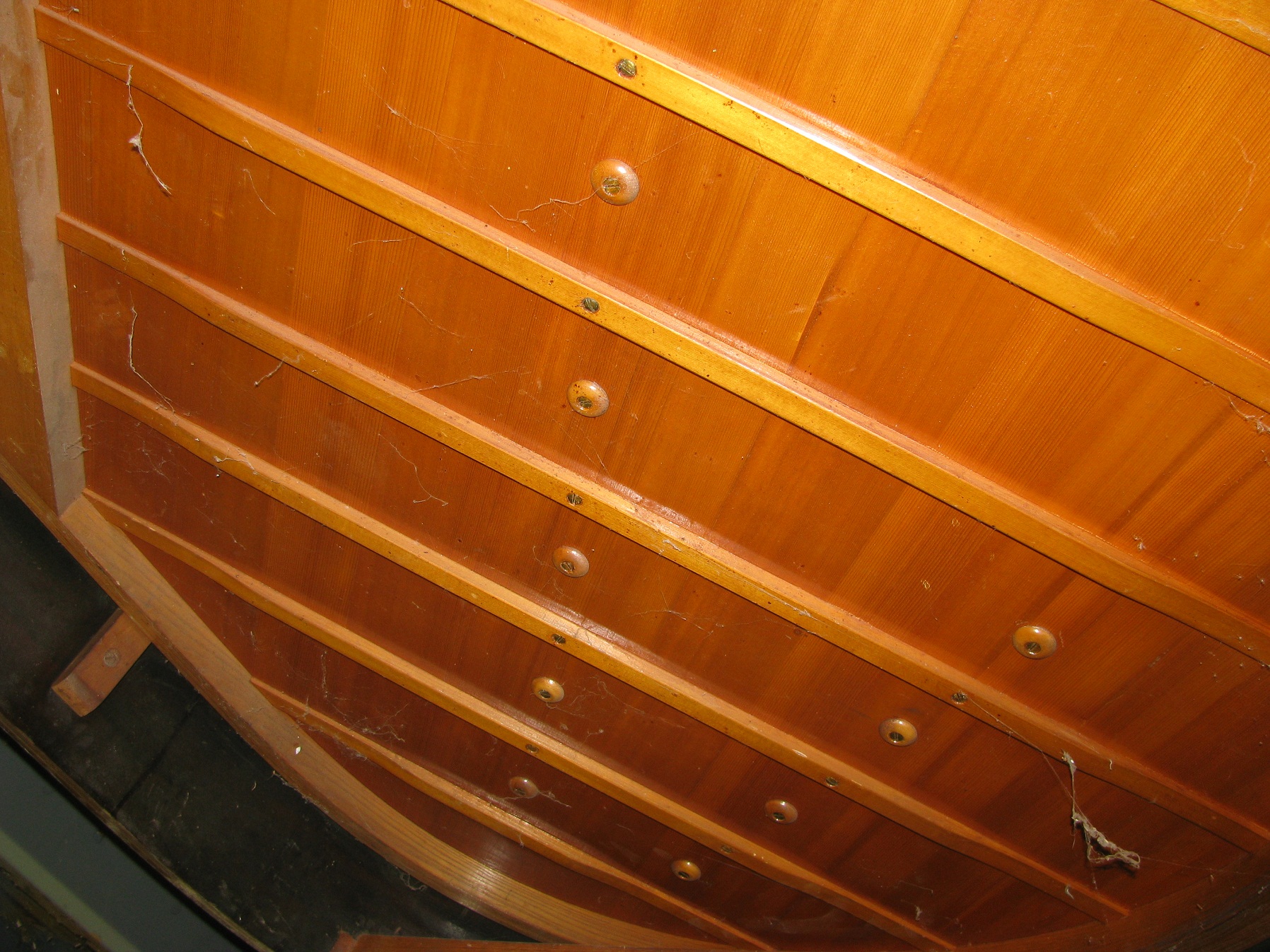

Hey Al. Heres the full picture. The ribs are a total about 25 mm tall. Half on one side of the board and half on the other. No Beams. On the bottom picture there is an oak perimeter the soundboard is sandwiched between. That rim is screwed to the plate. No Beams, no, strips no Smoke and mirrors. The plate supports it all. The case is merely furniture that the structure is attached lightly to. The board is crowned between pieces of the belly rail and crowned also along the bridge. Double crowned! It is a brilliant design. Expensive too. Dale S. Erwin www.Erwinspiano.com 209-577-8397 209-985-0990 Ronsen hammers/prep Sitka Sound boards Belly packages Poor decisions are rarely made right by a greatercommitment to them. "David Love" -----Original Message----- From: Al Guecia <alguecia at gmail.com> To: pianotech at googlegroups.com Sent: Sat, Jul 2, 2011 6:47 am Subject: Re: [ptech] Image attachment test- More Julius Bauer photos Wait a minute......somebody installed that soundboard upside down :-) Al - High Point, NC On Jul 2, 2011, at 1:12 AM, Dale Erwin wrote: <Julius Bauer 3.jpg> <Julius-4.jpg> Dale S. Erwin www.Erwinspiano.com 209-577-8397 209-985-0990 Ronsen hammers/prep Sitka Sound boards Belly packages Poor decisions are rarely made right by a greatercommitment to them. "David Love" -----Original Message----- From: J. Stanley Ryberg <jstan40 at sbcglobal.net> To: pianotech at googlegroups.com Sent: Fri, Jul 1, 2011 7:12 pm Subject: Re: [ptech] Image attachment test Hi, Jim! The picture came through loud and clear...or maybe big and heavy, given it was a Julius Bauer... Stan Ryberg Barrington IL jstan40 at sbcglobal.net --- On Fri, 7/1/11, Jim Moy <jim at moypiano.com> wrote: From: Jim Moy <jim at moypiano.com> Subject: [ptech] Image attachment test To: pianotech at googlegroups.com Date: Friday, July 1, 2011, 6:15 PM Image of me pulling a plate, just to test a 213 KB image attachment. -- To unsubscribe: pianotech+unsubscribe at googlegroups.com For more options, visit this group at http://groups.google.com/group/pianotech?hl=en?hl=en -- To unsubscribe: pianotech+unsubscribe at googlegroups.com For more options, visit this group at http://groups.google.com/group/pianotech?hl=en?hl=en -- To unsubscribe: pianotech+unsubscribe at googlegroups.com For more options, visit this group at http://groups.google.com/group/pianotech?hl=en?hl=en -- To unsubscribe: pianotech+unsubscribe at googlegroups.com For more options, visit this group at http://groups.google.com/group/pianotech?hl=en?hl=en -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110702/1a369393/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 848346 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110702/1a369393/attachment-0002.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: not available Type: image/jpeg Size: 820108 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110702/1a369393/attachment-0003.jpeg>
