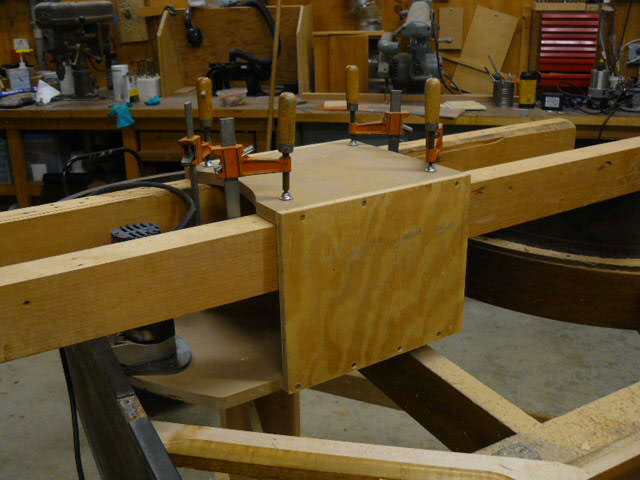

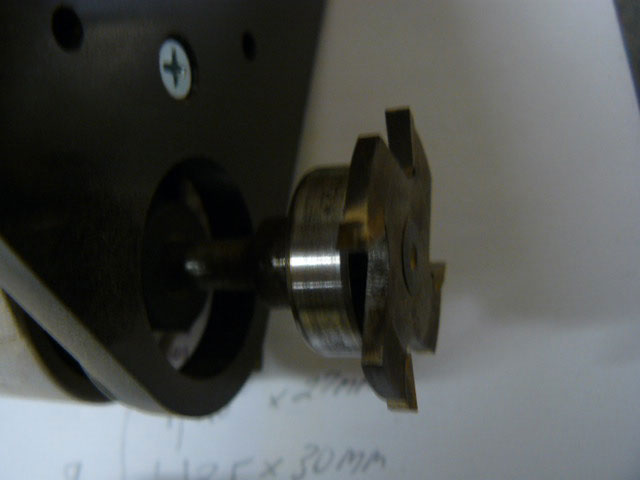

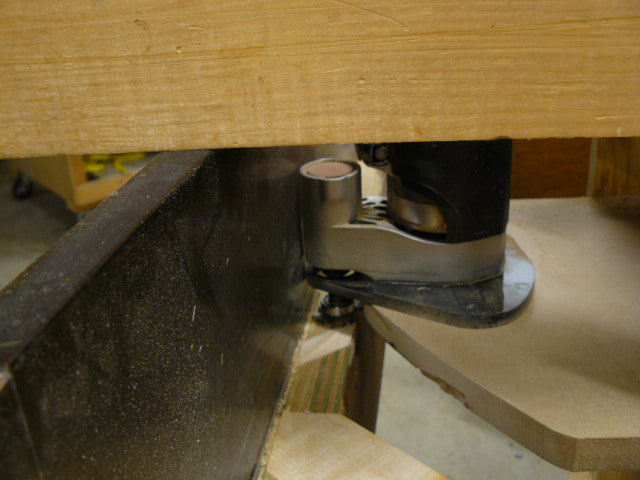

This rim glue ledge trimming rig worked pretty well, so I figured I'd post it, even though I know many of you aren't interested in messing with the glue ledge. I offer it as shop ammunition for whatever use may come along sometime. Its simply two stable 6' beams, and a plywood box. The beams have been jointed and planed so there are at 2 parallel sides. THe beams index off the rim top edge, and also serve as the index for the top of the offset router plywood box to hang from. The router bit is the crux of the setup, as it cuts the entire ledge, up to the outer rim, so there is 0" to maybe 1/16" left of the glue ledge to remove with a knife or chisel. The bit is a weatherstripping kerfing bit, with no shank protruding past the cutter. http://www.conservationtechnology.com/building_weatherseals.html (Their website doesn't show the bit, so you'd need to call) Since the offset trim router does not adjust to different cutting depths, I put 2 or 3 layers of 1/16" poster board under the beams at the the cutting side, and removed the poster board sheets one-at-a-time to achieve the finished set depth of cut. I was trying to go easy on the machine since offset routers are not designed to take serious bites of anything. It took a little getting used to, trying to make sure I wasn't deflecting the part of the box that the router sits on. A little creative shimming here and there though, and it worked out nicely...just a little hand work to finish up. Jim Ialeggio -- Jim Ialeggio jim at grandpianosolutions.com 978 425-9026 Shirley Center, MA -------------- next part -------------- A non-text attachment was scrubbed... Name: rim-trimming1.jpg Type: image/jpeg Size: 54435 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121204/9ae17cdd/attachment-0003.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: rim-trimming2.jpg Type: image/jpeg Size: 48999 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121204/9ae17cdd/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: rim-trimming3.jpg Type: image/jpeg Size: 25614 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121204/9ae17cdd/attachment-0005.jpg>
