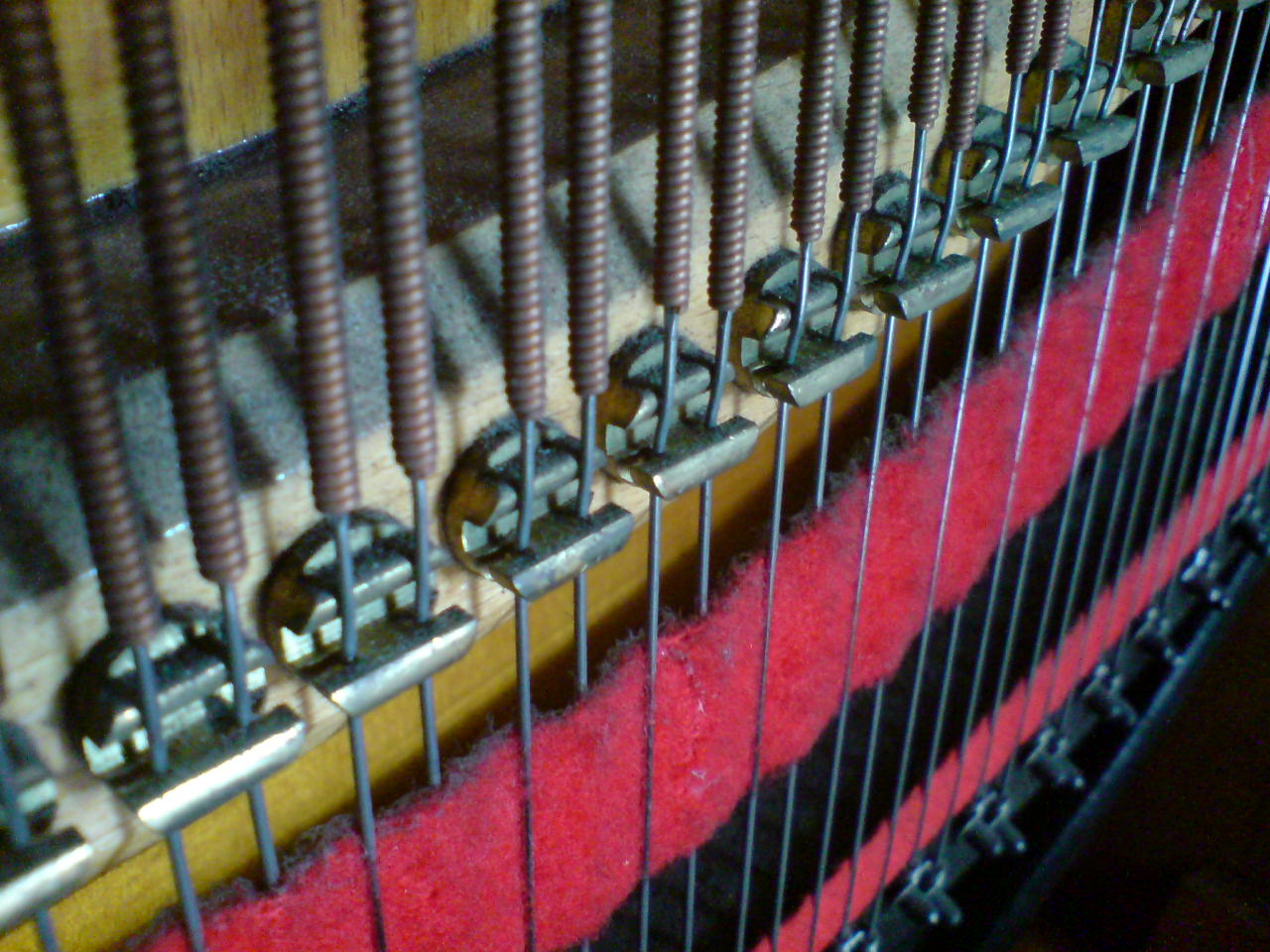

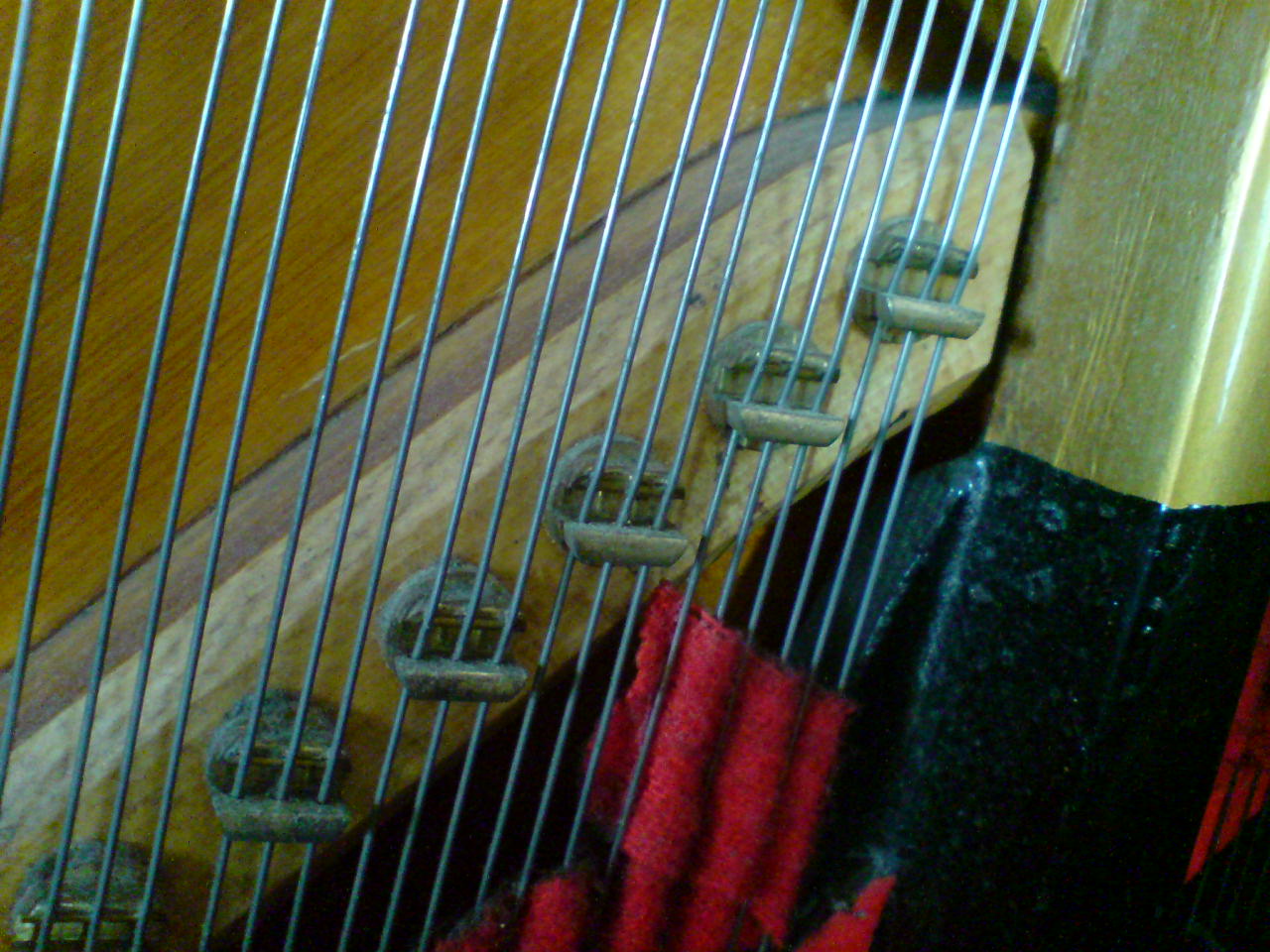

Here are photos of a Swiss Sabel upright with bridge agraffes. Sounds good, not metalic nor with false beats. To be honest: it sounds absolutely normal. I would not have noticed that special bridge arrangement while tuning if I had not taken a look on the bridge. Gregor ------------------------ piano technician - tuner - dealer Münster, Germany www.weldert.de > From: davidlovepianos at comcast.net > To: pianotech at ptg.org > Date: Thu, 25 Oct 2012 12:22:05 -0700 > Subject: [pianotech] Bridge agraffes FYI > > > Attached are two photos of a Sohmer Grand bridge with bridge agraffes. Very > interesting in that the string bears on the top of the aggraffe hole, not on > the bottom as one might expect. In order to maintain positive downbearing > on the bridge, the bridge has a raised shelf behind the aggraffe such that > the string runs uphill to the bridge from the hitch pin area before running > downhill to the aggraffe from the short span off the front of the shelf. > The slope of the string then rises as you move toward the tuning pin > termination side. Sadly, I did not have my bubble gauge to try and > determine the net bearing and it's definitely got me reaching for the fish > oil capsules thinking about whether a measurement of the relationship > between the hitch segment and the front segment would reveal the net bearing > anyway. The piano sounded like caca, btw, but there were other issues. In > spite of that, the tone was surprisingly focused. > > David Love -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121026/6a8eb127/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: Stegagraffen1.JPG Type: image/jpeg Size: 222022 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121026/6a8eb127/attachment-0002.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Stegagraffen2.JPG Type: image/jpeg Size: 218990 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20121026/6a8eb127/attachment-0003.jpeg>
