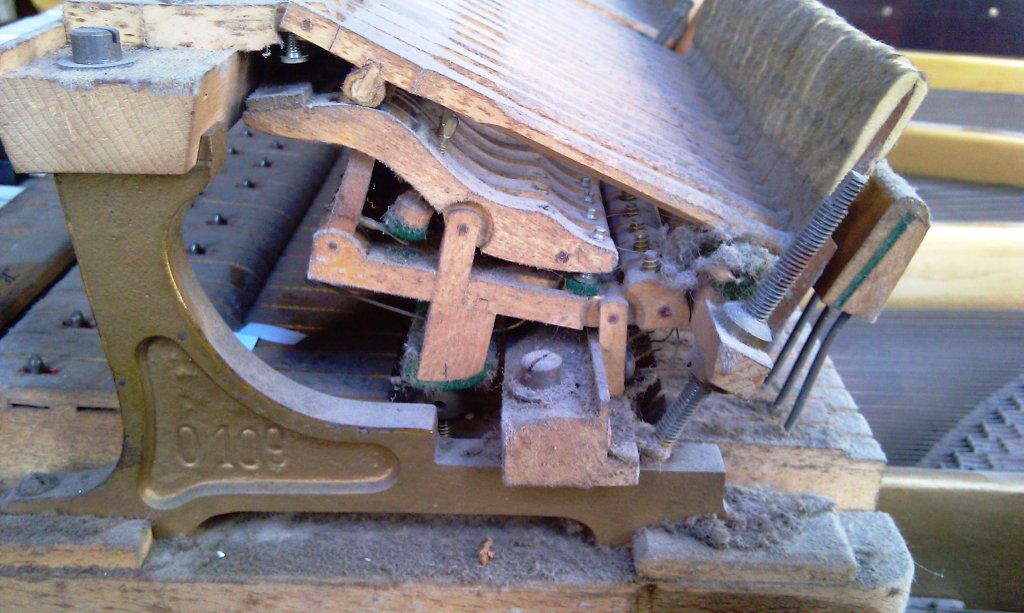

[pianotech] Curiously curvaceous repetition lever

[Susan Kline]

Might what we took to be a spoon pressing against the letoff button
really be
the repetition spring, looped to the front of the jack?

If so, what will press on the letoff button?

I agree, fun action .... David, could we get some more photos?

Susan

Overs Pianos wrote:
> Susan,
>
>> . . . Might there be a small coil spring hidden inside
>> the curve, pushing directly against the top part of the jack?
>
> I believe your speculation regarding a spring is correct, but it will
> be the repetition-spring which is doing the work for the jack return
> also. Notice that the rep' spring runs through what is almost
> certainly a slotted wippen heel. There must be a loop cord which we
> can't see, which is attached to the front of the jack (on the
> key-front side of the jack-centre), so that the spring provides the
> reverse jack rotation which is required to return it under the knuckle
> after lett-off. This is an interesting concept, because with this
> arrangement the jack escapement will be running in the same direction
> as the rotation of the roller as the let-off point is approached.
> Let-off should be a little less obvious in this action than it is with
> a conventional arrangement. The idea of the lower
> repetition-lever-centre is almost certainly intended to lower friction
> between the knuckle and repetition lever during the let-off. But I
> suspect that the centre has been lowered to such a degree that there
> may well be some friction in the opposite direction to that which is
> usual, with respect to a 'standard' action.
>
> Ron O.
> --
>
> *OVERS PIANOS - SYDNEY*
> /   //Grand Piano Manufacturers/
> _______________________
>
> Web http://overspianos.com.au
> mailto:ron at overspianos.com.au
> _______________________
>
> /A web page with images of recent work and almost-audio-CD quality mp3
> sound files of the Overs piano can be found at;/
> /http://overspianos.com.au/more_info.htm/
> /
> /
> /So put on your headphones, plug them into your freshly restarted
> computer and sit back to over 20 minutes of pure piano./
>  _______________________
>
