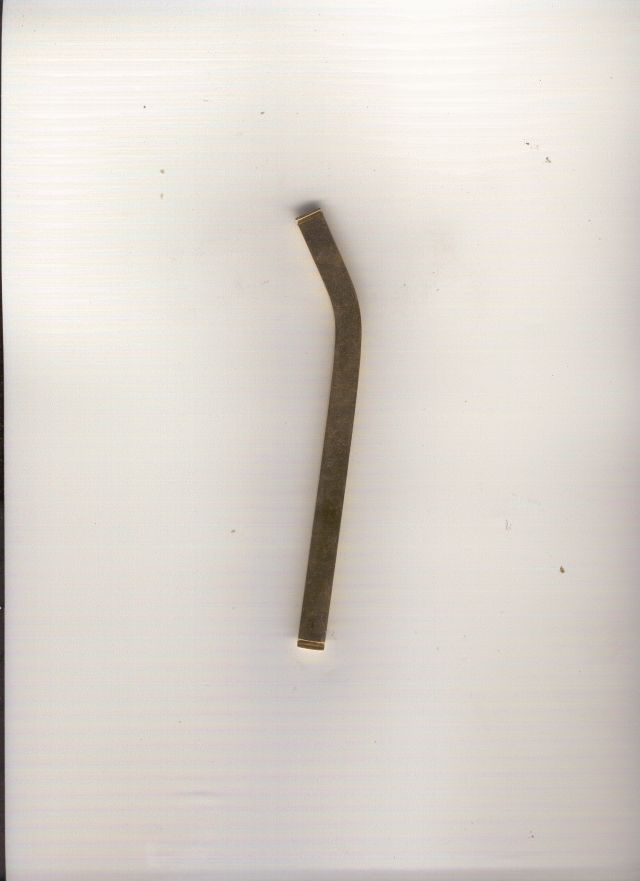

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment ------=_NextPart_84815C5ABAF209EF376268C8 Installment #2.<G> I'm sending each, separately, so's not to go over the size limits.<G> This tool is made from a piece of Brass Bar Stock, 1/4"x3/8". The bend is done "cold". (Put it in a vise and hit it with a dead blow hammer.) The grooves are simply cut with a regular hacksaw, which should give you a groove that will accomodate most string sizes. Cut the grooves about 1/16" deep. Grind to get the clearance to access the middle string(s). The way this tool works, is to simply put it on the string and push/pull with very little effort. Go easy, as this tool will give you "massive" results!!! I usually use this tool, over all others, as it is so effortless and controllable. Pull to raise the string. Push to lower. I usually place the tool about 1/2" from the agraffe to get the desired results. Have fun.<G> Installment #3 is next. (a side view of this tool). Regards, Joe Garrett, R.P.T. (Oregon) Captain, Tool Police Squares R I ------=_NextPart_84815C5ABAF209EF376268C8 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/89/ea/0e/c4/attachment.htm ------=_NextPart_84815C5ABAF209EF376268C8-- ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Str.LevelingTool#2A.jpg Type: image/jpeg Size: 41101 bytes Desc: Str.LevelingTool#2A.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/b1/7f/7c/82/Str.LevelingTool2A.jpg ---------------------- multipart/mixed attachment--
