bridge recapping tools

[Ron Nossaman]

> I must dive in to my first treble bridge recapping job.  I
> have only done a bass bridge thus far and it was only
> beveled, not notched.   Maybe the difficulty of this job
> can be taken down a few notches if I get the best tools and
> wonder what you would recommend.

Which tools are best is written in the blood stains of the user.


> I have looked at the Mazzaglia website and saw: Bridge pin
> tri-punches Massive chisels Bearing saw Bearing gauges
> Bearing lines Notch tool - for cutting and cleaning the
> sides of the notches Bridge capping washers - is this for
> putting pressure on the joint while gluing on the new cap?

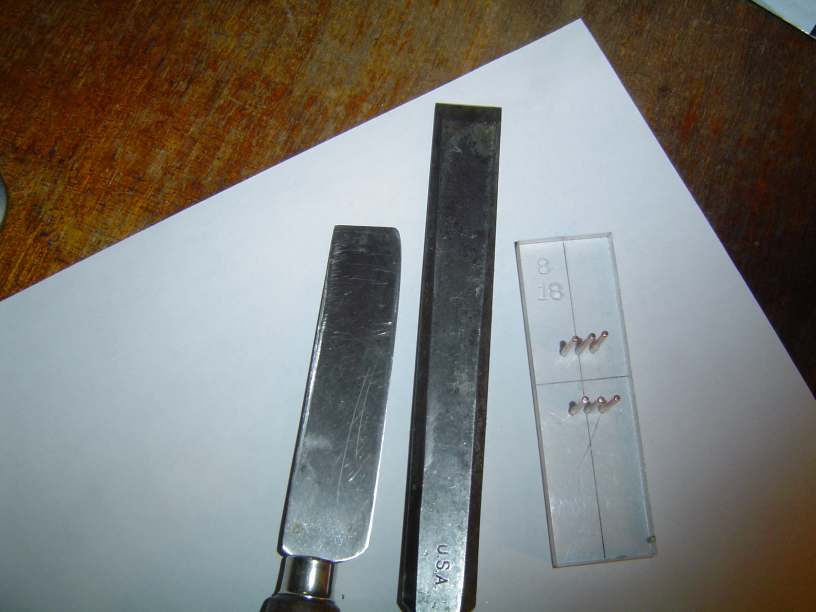

Below is a photo of my notching tools. Pin punches are easily
made from scrap 1/4" Plexiglass, and easily re-made if you
don't like the first test. Do, by the way, test on a mock up
before committing on the actual bridge. Go for about a 10°
offset angle.

I cut notch sides with the knife (with nicely curved edge) and
a hammer (producing the dents on the knife's spine in the
photo). This works as well for me as anything I've tried.

Some folks like a really heavy mortising chisel, some like the
Japanese chisels. I like a long blade (paring chisel), and
considerable overall length. Mine is 12-3/8" (135mm) long,
with a 6-1/2" (165mm) blade, 7/8 (23mm) wide. Any of these
will work. It's a matter of personal preference and control.


> Do you recommend PianoTek's bridge capping material or who
> else.

If you're planning on planing the new cap to finish thickness,
stick with solid maple instead of laminated. The Pianotek
stock should be fine.


> I have read Bob Hohf's article on Bridge Recapping - not
> artilcle more like a book.  Is there another good writing
> on this ? - need something concise I know I'm going to
> have a lot of questions on this and will also look over the
> archives.

The Journal reprints on CD has a bunch of stuff.

Ron N
